IO-Power USMC-12V0206-II Series IO-Power USMC-12V0712-II Series IO-Power USMC-12V1224-OA Series IO-Power USMC-12V3556-OA Series
Automobile Fast Charge Model Automobile Large Consumption Model Automobile Heavy Current & Super Long-acting Model Automobile Heavy Current & Large Capacity Model
Online Type Uninterruptible Operation Boost & Stable Power System Online Type Uninterruptible Operation Boost & Stable Power System Online Type Uninterruptible Operation Boost & Stable Power System Online Type Uninterruptible Operation Boost & Stable Power System



Product Images Product Data Sheet Product User Manuals Other
Download Download Download Download



Product Images Product Data Sheet Product User Manuals Other
IO-Power USMC-12V0206-II Series Download Download Download Download
Automobile Fast Charge Model

Online Type Uninterruptible Operation Boost & Stable Power System

IOP-USMC-12V0206-II Series Specification

Model

USMC-1202-01A

USMC-1204-02A

USMC-1206-03A

Automobile High Temperature Model

DC Jack

Iron Airtight Housing

IP 67



Built In C-LiFePO4 Lithium Batteries Power Capacity

29WH
(2.3Ah@12.8V)

55WH
(4.3Ah@12.8V)

74WH
(5.8Ah@12.8V)

General UPS Label Size (DC Power Factor is Equal to 1)

174VA

330VA

444VA

Max Output Wattage (Battery Life Protection Design)

75W/H

75W/H

75W/H

UPS Discharge Power Supply Time

More than 0.3hr
@75W/H Discharge

More than 0.7hr
@75W/H Discharge

More than 0.9hr
@75W/H Discharge

Quickly Full Charge DC UPS Battery Time

About 1hr
@3.5A Charging

About 1.5hr
@3.5A Charging

About 2hr
@3.5A Charging

Vehicle DC Buck Boost Voltage Convertor
DC UPS system
Output DC voltage / current

Through the car cigarette lighter or vehicle power circuit, input DC 12~28V voltage/current 6A (8A Max), the automatic Buck Boost Voltage Convertor (BBVC) output 20VDC/4A (5A Max) to charge the DC UPS power supply system
Output DC voltage / current: 12VDC/6A

External load voltage

DC 11.7V~14.2V +-3%

External load current

3.5A (6A around 75W/H Max)

Battery charging voltage

13.8V~14.2V +-3% Max

Battery standard charging current

3A

Transform Efficiency

95%

Strengthen the protection measures

With

Special operations functions

l   Power outages without disrupting the operation of the on-line operation system (monitor system not black screen)

l   MCU microprocessor starts, automatic charging and discharging systems functioning State protection

l   Automatically detect abnormal voltage the battery status and abnormal aging or faulty battery or battery charging protection

l   Shell opening record of vandal detection and RS-485 signal alarm mechanism (optional function)

l   With temperature detection records with read function mechanism

l   Mechanism of low temperature (@ -35°C) & high temperature (@ +75°C) protection (Please see note 3 & note 4)

l   Specially designed battery cycle life defining and recording and control mechanisms (optional function)

l   RS-485 input / output interface, can enhance remote management and control in real time (optional function)

l   System operation State record function

l   Support industrial MODBUS communication protocol (allowing the PLC programmable logic control)

l   Input overvoltage protection

l   Input power supply over-current protection

l   Input of positive and negative polarity reverse protection

l   Input short-circuit protection

l   Input lightning or power surge protection up to 1300W

l   Battery full charge, input power supply power directly to the load, maximum output power is reached, at the same time avoiding battery overcharge protection

l   Battery intelligent charging system protection and the float charge function

l   Output power limit voltage protection

l   Output power limit current protection

l   Output of positive and negative polarity reverse protection

l   Output short circuit protection

l   Output lightning or power surge protection up to 1300W

l   Battery voltage is less than 12.8V, MCU microprocessor automatically starts into the battery low discharge warning state

l   Battery discharge below the 11.7V,MCU microprocessor automatically stop discharging into the battery low voltage protection status

l   Battery voltage is lower than 11.2V, MCU microprocessor goes into sleep protection status

l   Battery low voltage static ultra-low power protection

l   When the input power, MCU microprocessor automatically starts recovery operation mechanism

l   After discharge low voltage battery protection to restart the battery, special designed discharge voltage protection function

l   Discharging under load, batteries have added support mode power supply operation

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with car cigarette lighter power connection charging port and protection (including fuse)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with buck boost voltage, fixed voltage, and stabilizing the voltage to upgrade effect of power supply protection.

l   Match the automatic Buck Boost Voltage Convertor (BBVC), overvoltage and overcurrent and lightning / power surge protection (30V 1500W)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), DC 18-20VDC power supply can be used as a vehicle and charge the notebook or device for temporary

l   Specially designed "Automatically Detect the Healing Recovery Function", to solve user errors using an action or temporary power Input charge / output discharge for abnormal, causing alarm fault automatic removal mechanism of State

Support Battery Type

C-LiFePO4 Lithium Batteries

Lead-acid batteries or lithium batteries or other battery, can be customized to modify (optional function)

Battery Safety Protection

Use pressure type explosion-proof battery design

Built-in battery capacity range

1.2Ah @ 12.8V (14WH) ~ 8.7Ah @ 12.8V (111WH)

Battery Charge Mode

CC/CV MCU Automatic charging mode control

Battery Charge Voltage

14.2V +- 3%

Battery Charge Float Voltage

13.8V +- 3%

Battery Cut-off Discharge Voltage

11.7V +- 3%

Battery recovery discharge voltage

12.8V +- 3%

Max. Charge Current

4A

Max. Discharge Current

6A (Using load-discharge C-LiFePO4 Lithium Batteries, the maximum discharge current is 6A around 75W/H)

Charging and Discharging at same time, the Max. discharge current

3A

Charging and Discharging at same time, the Max. discharge watts

40W/H, recommends assessing the normal functioning of the system total power consumption, lower wattage requirements is appropriate.

Life cycle the battery 0.2C charge & 0.5C discharge(Battery capacity remaining after using 80%, the defined service life will terminate)

@ 25°C 2000 Times (@ 25°C discharging 800 times: after more than 93% capacity, @ 25°C discharging 1100 times: after more than 90% capacity)
@ 45
°C 1600 Times
@ 50
°C 1200 Times
@ 60°C  550 Times
@ 60°C 720 Times  70%

Industrial Housing & Connector

Iron Airtight Housing
IP 68 Gland Connector

Connector Type

Vehicle charging circuit or car cigarette lighter, enter 12~28V DC voltage / current 6A (8A Max)
DC output: 12V DC Jack to DC Jack connector
Input / Output I/O interface: RS-485 (optional function)

Operating Temperature

(Discharge Temperature)

-35°C ~ +75°C (Including the chassis of the machine working temperature tolerance)
-20
°C ~ +60°C (Excluding institutions, the battery operating temperature tolerance)
+20
°C ~ +40°C Battery Capacity:100%
-10
°C Battery Capacity : 60%
-20
°C Battery Capacity : 48%

Charging Temperature

-35°C ~ +75°C (Including the casing machine operation)

Storage Temperature

-35°C ~ +75°CRecommendations at +20°C ~ +30°C environmental temperature for storage.

Rel. Humidity

10~95%RH

Storage Time

Do not wake the system can store 12 months
(after you wake the system, each 3 months charging 1 times; Please fully charging battery in first times to use)

Dimension

DC UPS : 125mm(L)x110mm(W)x150mm(H) ; BBVC : 195mm(L)x92mm(W)x48mm(H)

Weight

1.2Kg + 0.5Kg(BBVC)

1.4Kg + 0.5Kg(BBVC)

1.6Kg + 0.5Kg(BBVC)

LED Indicator

1. AC input (Converted to DC power supplies): red light constant light, show on battery in full charge status.
2. AC input (Converted to DC power supplies): red light flashing display, represents the battery is charging status.
3. When the battery is not charging, insert the 12VDC device load discharge, discharge the green light constant light show, shine on behalf of low voltage in discharge, please do the charging operation
4. Simultaneous charging of the battery, insert the 12VDC device load discharge, discharge the green light constant light show
5. AC input (Converted to DC power supplies): quick shine a red light shows that represents an input power supply or the input port or the battery charge State, please remove the input power terminal as soon as possible.
6. Insert the load discharge 12VDC devices: fast shiny green display on behalf of power output or output port or abnormal battery discharge condition is request to remove output power connector as soon as possible.

Note 1: when the system alarm status, please remove the cause as soon as possible the reason for the exception. When after eliminating abnormal, just re-switch input power supply or plug power to supply again, the red LED flashing light signal will resume once per second in charging status. Those processing will remove most of the alarm status, allow the system to resume normal operation.

Note 2: when a temporary abnormal use or abnormal operation occurs, causing the system to start the alarm status, specially designed automatic recovery mechanism 3 times the purpose and again after every 10 seconds to detect anomalies and try to exclude temporary malfunction alarm state.

Housing

IP66

Approvals

CE & FCC

Installation

1.Street lamp pole mount
2.Upright pole mount
3.Wall mount installation
4.DIN Rail (Optional)

Warranty

Intelligent charge & discharge main board & IP66 housing & parts support two years limited warranty.
Customize C-LiFePO4 lithium batteries support one year limited warranty.

Note 1: Battery Capacity is +- 5%.

Note 2: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications.

Note 3: detect the temperature reached -30, start the red LED have low temperature warning, reach low temperature -35 , a start-stop system function will enable, when temperatures returned to above -30, normal operation will resume.

Note 4: detect the temperature reached +70, start red LED have high temperature warning, reach high temperature +75, a start-stop system function will enable, when temperatures back below +70 temperature, normal operation will resume.



Product Images Product Data Sheet Product User Manuals Other
IO-Power USMC-12V0712-II Series Download Download Download Download
Automobile Large Consumption Model

Online Type Uninterruptible Operation Boost & Stable Power System

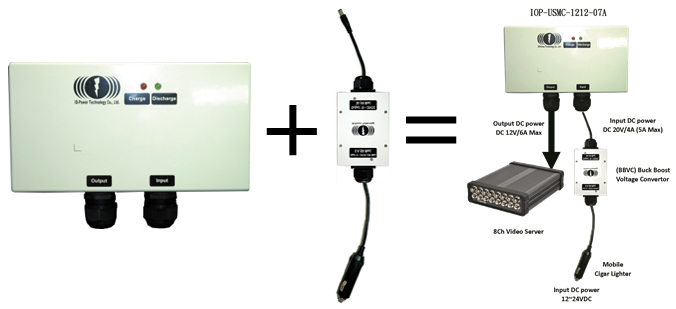

IOP-USMC-12V0712-II Series Specification

Model

USMC-1207-04A

USMC-1208-05A

USMC-1210-06A

USMC-1212-07A

Automobile High Temperature Model

DC Jack

Iron Airtight Housing

IP 67



Built In C-LiFePO4 Lithium Batteries Power Capacity

88 WH
(6.9Ah@12.8V)

103 WH
(8.05Ah@12.8V)

117 WH
(9.2Ah@12.8V)

148 WH
(11.6Ah@12.8V)

General UPS Label Size (DC Power Factor is Equal to 1)

528VA

618VA

702VA

888VA

Max Output Wattage (Battery Life Protection Design)

75W/H

75W/H

75W/H

75W/H

UPS Discharge Power Supply Time

More than 1hr
@75W/H Discharge

More than 1.3hr
@75W/H Discharge

More than 1.5hr
@75W/H Discharge

More than 1.9hr
@75W/H Discharge

Quickly Full Charge DC UPS Battery Time

About 2.0hr
@3.5A Charging

About 2.5hr
@3.5A Charging

About 3.0hr
@3.5A Charging

About 3.5hr
@3.5A Charging

Vehicle DC Buck Boost Voltage Convertor
DC UPS system
Output DC voltage / current

Through the car cigarette lighter or vehicle power circuit, input DC 12~28V voltage/current 6A (8A Max), the automatic Buck Boost Voltage Convertor (BBVC) output 20VDC/4A (5A Max) to charge the DC UPS power supply system
Output DC voltage / current: 12VDC/6A

External load voltage

DC 11.7V~14.2V +-3%

External load current

3.5A (6A around 75W/H Max)

Battery charging voltage

13.8V~14.2V +-3% Max

Battery standard charging current

3A

Transform Efficiency

95%

Strengthen the protection measures

With

Special operations functions

l   Power outages without disrupting the operation of the on-line operation system (monitor system not black screen)

l   MCU microprocessor starts, automatic charging and discharging systems functioning State protection

l   Automatically detect abnormal voltage the battery status and abnormal aging or faulty battery or battery charging protection

l   Shell opening record of vandal detection and RS-485 signal alarm mechanism (optional function)

l   With temperature detection records with read function mechanism

l   Mechanism of low temperature (@ -35°C) & high temperature (@ +75°C) protection (Please see note 3 & note 4)

l   Specially designed battery cycle life defining and recording and control mechanisms (optional function)

l   RS-485 input / output interface, can enhance remote management and control in real time (optional function)

l   System operation State record function

l   Support industrial MODBUS communication protocol (allowing the PLC programmable logic control)

l   Input overvoltage protection

l   Input power supply over-current protection

l   Input of positive and negative polarity reverse protection

l   Input short-circuit protection

l   Input lightning or power surge protection up to 1300W

l   Battery full charge, input power supply power directly to the load, maximum output power is reached, at the same time avoiding battery overcharge protection

l   Battery intelligent charging system protection and the float charge function

l   Output power limit voltage protection

l   Output power limit current protection

l   Output of positive and negative polarity reverse protection

l   Output short circuit protection

l   Output lightning or power surge protection up to 1300W

l   Battery voltage is less than 12.8V, MCU microprocessor automatically starts into the battery low discharge warning state

l   Battery discharge below the 11.7V,MCU microprocessor automatically stop discharging into the battery low voltage protection status

l   Battery voltage is lower than 11.2V, MCU microprocessor goes into sleep protection status

l   Battery low voltage static ultra-low power protection

l   When the input power, MCU microprocessor automatically starts recovery operation mechanism

l   After discharge low voltage battery protection to restart the battery, special designed discharge voltage protection function

l   Discharging under load, batteries have added support mode power supply operation

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with car cigarette lighter power connection charging port and protection (including fuse)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with buck boost voltage, fixed voltage, and stabilizing the voltage to upgrade effect of power supply protection.

l   Match the automatic Buck Boost Voltage Convertor (BBVC), overvoltage and overcurrent and lightning / power surge protection (30V 1500W)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), DC 18-20VDC power supply can be used as a vehicle and charge the notebook or device for temporary

l   Specially designed "Automatically Detect the Healing Recovery Function", to solve user errors using an action or temporary power Input charge / output discharge for abnormal, causing alarm fault automatic removal mechanism of State

Support Battery Type

C-LiFePO4 Lithium Batteries
Lead-acid batteries or lithium batteries or other battery, can be customized to modify (optional function)

Battery Safety Protection

Use pressure type explosion-proof battery design

Built-in battery capacity range

6.9Ah @ 12.8V (88WH) ~ 14.5Ah @ 12.8V (185WH)

Battery Charge Mode

CC/CV MCU Automatic charging mode control

Battery Charge Voltage

14.2V +- 3%

Battery Charge Float Voltage

13.8V +- 3%

Battery Cut-off Discharge Voltage

11.7V +- 3%

Battery recovery discharge voltage

12.8V +- 3%

Max. Charge Current

4A

Max. Discharge Current

6A (Using load-discharge C-LiFePO4 Lithium Batteries, the maximum discharge current is 6A around 75W/H)

Charging and Discharging at same time, the Max. discharge current

4A

Charging and Discharging at same time, the Max. discharge watts

50W/H, recommends assessing the normal functioning of the system total power consumption, lower wattage requirements is appropriate.

Life cycle the battery 0.2C charge & 0.5C discharge

(Battery capacity remaining after using 80%, the defined service life will terminate)

@ 25°C 2000 Times (@ 25°C discharging 800 times: after more than 93% capacity, @ 25°C discharging 1100 times: after more than 90% capacity)
@ 45
°C 1600 Times
@ 50
°C 1200 Times
@ 60
°C 550 Times
@ 60
°C 720 Times  70%

Industrial Housing & Connector

Iron Airtight Housing
IP 68 Gland Connector

Connector Type

Vehicle charging circuit or car cigarette lighter, enter 12~28V DC voltage / current 6A (8A Max)
DC output: 12V DC Jack to DC Jack connector
Input / Output I/O interface: RS-485 (optional function)

Operating Temperature

(Discharge Temperature)

-30°C ~ +70°C (Including the chassis of the machine working temperature tolerance)
-20
°C ~ +60°C (Excluding institutions, the battery operating temperature tolerance)
+20
°C ~ +40°C Battery Capacity:100%
-10
°C Battery Capacity : 60%
-20
°C Battery Capacity : 48%

Charging Temperature

-35°C ~ +75°C (Including the casing machine operation)

Storage Temperature

-35°C ~ +75°CRecommendations at +20°C ~ +30°C environmental temperature for storage.

Rel. Humidity

10~95%RH

Storage Time

Do not wake the system can store 12 months
(after you wake the system, each 3 months charging 1 times; Please fully charging battery in first times to use)

Dimension

DC UPS : 210(L) x 110(W) x 150mm(H); BBVC : 195mm(L)x92mm(W)x48mm(H)

Weight

2.3Kg + 0.5Kg(BBVC)

2.5Kg + 0.5Kg(BBVC)

2.7Kg + 0.5Kg(BBVC)

2.9Kg + 0.5Kg(BBVC)

LED Indicator

1. AC input (Converted to DC power supplies): red light constant light, show on battery in full charge status.
2. AC input (Converted to DC power supplies): red light flashing display, represents the battery is charging status.
3. When the battery is not charging, insert the 12VDC device load discharge, discharge the green light constant light show, shine on behalf of low voltage in discharge, please do the charging operation
4. Simultaneous charging of the battery, insert the 12VDC device load discharge, discharge the green light constant light show
5. AC input (Converted to DC power supplies): quick shine a red light shows that represents an input power supply or the input port or the battery charge State, please remove the input power terminal as soon as possible.
6. Insert the load discharge 12VDC devices: fast shiny green display on behalf of power output or output port or abnormal battery discharge condition is request to remove output power connector as soon as possible.

Note 1: when the system alarm status, please remove the cause as soon as possible the reason for the exception. When after eliminating abnormal, just re-switch input power supply or plug power to supply again, the red LED flashing light signal will resume once per second in charging status. Those processing will remove most of the alarm status, allow the system to resume normal operation.

Note 2: when a temporary abnormal use or abnormal operation occurs, causing the system to start the alarm status, specially designed automatic recovery mechanism 3 times the purpose and again after every 10 seconds to detect anomalies and try to exclude temporary malfunction alarm state.

Housing

IP66

Approvals

CE & FCC

Installation

1.Street lamp pole mount
2.Upright pole mount
3.Wall mount installation
4.DIN Rail (Optional)

Warranty

Intelligent charge & discharge main board & IP66 housing & parts support two years limited warranty.
Customize C-LiFePO4 lithium batteries support one year limited warranty.

Note 1: Battery Capacity is +- 5%.

Note 2: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications.

Note 3: detect the temperature reached -30, start the red LED have low temperature warning, reach low temperature -35 , a start-stop system function will enable, when temperatures returned to above -30, normal operation will resume.

Note 4: detect the temperature reached +70, start red LED have high temperature warning, reach high temperature +75, a start-stop system function will enable, when temperatures back below +70 temperature, normal operation will resume.


Product Images Product Data Sheet Product User Manuals Other
IO-Power USMC-12V1224OA Series Download Download Download Download
Automobile Heavy Current & Super Long-acting Model

Online Type Uninterruptible Operation Boost & Stable Power System

IOP-USMC-12V1224-OA Series Specification

Model

USMC-1212-06B

USMC-1216-07B

USMC-1218-08B

USMC-1224-09B

USMC-1228-10B

Automobile High Temperature Model

M12 Connector

Aluminum Radiating Airtight Housing

IP 67



Built In C-LiFePO4 Lithium Batteries Power Capacity

148 WH
(11.6Ah@12.8V)

206 WH
(16.1Ah@12.8V)

235 WH
(18.4Ah@12.8V)

297 WH
(23.2Ah@12.8V)

355 WH
(27.6Ah@12.8V)

General UPS Label Size (DC Power Factor is Equal to 1)

888VA (0.9KVA)

1236VA (1.2KVA)

1410VA (1.4KVA)

1782VA (1.8KVA)

2130VA (2.1KVA)

Max Output Wattage (Battery Life Protection Design)

85W/H

85W/H

85W/H

85W/H

85W/H

UPS Discharge Power Supply Time

More than 1.5hr
 @85W/H Discharge

More than 2hr
 @85W/H Discharge

More than 2.5hr
 @85W/H Discharge

More than 3hr
 @85W/H Discharge

More than 4hr
@85W/H Discharge

Quickly Full Charge DC UPS Battery Time

About 3hr
@4A Charging

About 4hr
@4A Charging

About 4.5hr
@4A Charging

About 6hr
@4A Charging

About 7hr
@4A Charging

Vehicle DC Buck Boost Voltage Convertor
DC UPS system
Output DC voltage / current

Through the car cigarette lighter or vehicle power circuit, input DC 12~28V voltage/current 6A (8A Max), the automatic Buck Boost Voltage Convertor (BBVC) output 20VDC/4A (5A Max) to charge the DC UPS power supply system
Output DC voltage / current: 12VDC/6A

External load voltage

DC 11.7V~14.2V +-3%

External load current

4A (7A around 85W/H Max)

Battery charging voltage

13.8V~14.2V +-3% Max

Battery standard charging current

4A

Transform Efficiency

95%

Strengthen the protection measures

With

Special operations functions

l   Power outages without disrupting the operation of the on-line operation system (monitor system not black screen)

l   MCU microprocessor starts, automatic charging and discharging systems functioning State protection

l   Automatically detect abnormal voltage the battery status and abnormal aging or faulty battery or battery charging protection

l   Shell opening record of vandal detection and RS-485 signal alarm mechanism (optional function)

l   With temperature detection records with read function mechanism

l   Mechanism of low temperature (@ -35°C) & high temperature (@ +75°C) protection (Please see note 3 & note 4)

l   Specially designed battery cycle life defining and recording and control mechanisms (optional function)

l   RS-485 input / output interface, can enhance remote management and control in real time (optional function)

l   System operation State record function

l   Support industrial MODBUS communication protocol (allowing the PLC programmable logic control)

l   Input overvoltage protection

l   Input power supply over-current protection

l   Input of positive and negative polarity reverse protection

l   Input short-circuit protection

l   Input lightning or power surge protection up to 1300W

l   Battery full charge, input power supply power directly to the load, maximum output power is reached, at the same time avoiding battery overcharge protection

l   Battery intelligent charging system protection and the float charge function

l   Output power limit voltage protection

l   Output power limit current protection

l   Output of positive and negative polarity reverse protection

l   Output short circuit protection

l   Output lightning or power surge protection up to 1300W

l   Battery voltage is less than 12.8V, MCU microprocessor automatically starts into the battery low discharge warning state

l   Battery discharge below the 11.7V,MCU microprocessor automatically stop discharging into the battery low voltage protection status

l   Battery voltage is lower than 11.2V, MCU microprocessor goes into sleep protection status

l   Battery low voltage static ultra-low power protection

l   When the input power, MCU microprocessor automatically starts recovery operation mechanism

l   After discharge low voltage battery protection to restart the battery, special designed discharge voltage protection function

l   Discharging under load, batteries have added support mode power supply operation

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with car cigarette lighter power connection charging port and protection (including fuse)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with buck boost voltage, fixed voltage, and stabilizing the voltage to upgrade effect of power supply protection.

l   Match the automatic Buck Boost Voltage Convertor (BBVC), overvoltage and overcurrent and lightning / power surge protection (30V 1500W)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), DC 18-20VDC power supply can be used as a vehicle and charge the notebook or device for temporary

l   Specially designed "Automatically Detect the Healing Recovery Function", to solve user errors using an action or temporary power Input charge / output discharge for abnormal, causing alarm fault automatic removal mechanism of State

Support Battery Type

C-LiFePO4 Lithium Batteries
Lead-acid batteries or lithium batteries or other battery, can be customized to modify (optional function)

Battery Safety Protection

Use pressure type explosion-proof battery design

Built-in battery capacity range

11.6Ah @ 12.8V (148 WH) ~ 30.0Ah @ 12.8V (384 WH)

Battery Charge Mode

CC/CV MCU Automatic charging mode control

Battery Charge Voltage

14.2V +- 3%

Battery Charge Float Voltage

13.8V +- 3%

Battery Cut-off Discharge Voltage

11.7V +- 3%

Battery recovery discharge voltage

12.8V +- 3%

Max. Charge Current

4.5A

Max. Discharge Current

7A (Using load-discharge C-LiFePO4 Lithium Batteries, the maximum discharge current is 7A around 85W/H)

Charging and Discharging at same time, the Max. discharge current

4A

Charging and Discharging at same time, the Max. discharge watts

55W/H, recommends assessing the normal functioning of the system total power consumption, lower wattage requirements is appropriate.

Life cycle the battery 0.2C charge & 0.5C discharge
(Battery capacity remaining after using 80%, the defined service life will terminate)

@ 25°C 2000 Times (@ 25°C discharging 800 times: after more than 93% capacity, @ 25°C discharging 1100 times: after more than 90% capacity)
@ 45
°C 1600 Times
@ 50
°C 1200 Times
@ 60
°C 550 Times
@ 60
°C 720 Times  70%

Industrial Housing & Connector

Aluminum Airtight Housing
IP 68 M12 Connector

Connector Type

Vehicle charging circuit or car cigarette lighter, enter 12~28V DC voltage / current 6A (8A Max)
DC output: 12V DC Jack to DC Jack connector
Input / Output I/O interface: RS-485 (optional function)

Operating Temperature

(Discharge Temperature)

-35°C ~ +75°C (Including the chassis of the machine working temperature tolerance)
-20
°C ~ +60°C (Excluding institutions, the battery operating temperature tolerance)
+20
°C ~ +40°C Battery Capacity:100%
-10
°C Battery Capacity : 60%
-20
°C Battery Capacity : 48%

Charging Temperature

-35°C ~ +75°C (Including the casing machine operation)

Storage Temperature

-35°C ~ +75°CRecommendations at +20°C ~ +30°C environmental temperature for storage.

Rel. Humidity

10~95%RH

Storage Time

Do not wake the system can store 12 months
(after you wake the system, each 3 months charging 1 times; Please fully charging battery in first times to use)

Dimension

DC UPS : 210(L) x 145(W) x 195mm(H) ; BBVC : 195mm(L)x92mm(W)x48mm(H)

Weight

2.5Kg + 0.5Kg(BBVC)

3Kg + 0.5Kg(BBVC)

3.2Kg + 0.5Kg(BBVC)

3.8Kg + 0.5Kg(BBVC)

4.5Kg + 0.5Kg(BBVC)

LED Indicator

1. AC input (Converted to DC power supplies): red light constant light, show on battery in full charge status.
2. AC input (Converted to DC power supplies): red light flashing display, represents the battery is charging status.
3. When the battery is not charging, insert the 12VDC device load discharge, discharge the green light constant light show, shine on behalf of low voltage in discharge, please do the charging operation
4. Simultaneous charging of the battery, insert the 12VDC device load discharge, discharge the green light constant light show
5. AC input (Converted to DC power supplies): quick shine a red light shows that represents an input power supply or the input port or the battery charge State, please remove the input power terminal as soon as possible.
6. Insert the load discharge 12VDC devices: fast shiny green display on behalf of power output or output port or abnormal battery discharge condition is request to remove output power connector as soon as possible.

Note 1: when the system alarm status, please remove the cause as soon as possible the reason for the exception. When after eliminating abnormal, just re-switch input power supply or plug power to supply again, the red LED flashing light signal will resume once per second in charging status. Those processing will remove most of the alarm status, allow the system to resume normal operation.

Note 2: when a temporary abnormal use or abnormal operation occurs, causing the system to start the alarm status, specially designed automatic recovery mechanism 3 times the purpose and again after every 10 seconds to detect anomalies and try to exclude temporary malfunction alarm state.

Housing

IP66

Approvals

CE & FCC

Installation

1.Street lamp pole mount
2.Upright pole mount
3.Wall mount installation
4.DIN Rail (Optional)

Warranty

Intelligent charge & discharge main board & IP66 housing & parts support two years limited warranty.
Customize C-LiFePO4 lithium batteries support one year limited warranty.

Note 1: Battery Capacity is +- 5%.

Note 2: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications.

Note 3: detect the temperature reached -30, start the red LED have low temperature warning, reach low temperature -35 , a start-stop system function will enable, when temperatures returned to above -30, normal operation will resume.

Note 4: detect the temperature reached +70, start red LED have high temperature warning, reach high temperature +75, a start-stop system function will enable, when temperatures back below +70 temperature, normal operation will resume.


Product Images Product Data Sheet Product User Manuals Other
IO-Power USMC-12V3556-OA Series Download Download Download Download
Automobile Heavy Current & Large Capacity Model
Online Type Uninterruptible Operation Boost & Stable Power System

IOP-USMC-12V3556-OA Series Specification

Model

USMC-1232-10B

USMC-1235-10B

USMC-1240-10B

USMC-1247-10B

USMC-1256-10B

Automobile High Temperature Model

M12 Connector

Aluminum Radiating Airtight Housing

IP 67



Built In C-LiFePO4 Lithium Batteries Power Capacity

412 WH
(32.2Ah @ 12.8V)

445 WH
(34.8Ah @ 12.8V)

515 WH
(40.2Ah @ 12.8V)

594 WH
(46.4Ah @ 12.8V)

716 WH
(56Ah @ 12.8V)

General UPS Label Size (DC Power Factor is Equal to 1)

2472VA (2.4KVA)

2670VA (2.6KVA)

3090VA (3KVA)

3564VA (3.5KVA)

4296VA (4.3KVA)

Max Output Wattage (Battery Life Protection Design)

100W/H

100W/H

100W/H

100W/H

100W/H

UPS Discharge Power Supply Time

More than 4hr
 @100W/H Discharge

More than 4.2hr
 @100W/H Discharge

More than 5hr
 @100W/H Discharge

More than 5.5hr
 @100W/H Discharge

More than 7hr
 @100W/H Discharge

Quickly Full Charge DC UPS Battery Time

About 6.5hr
@5A Charging

About 7hr
@5A Charging

About 8hr
@5A Charging

About 9.5hr
@5A Charging

About 11.5hr
@5A Charging

Vehicle DC Buck Boost Voltage Convertor
DC UPS system
Output DC voltage / current

Through the car cigarette lighter or vehicle power circuit, input DC 12~28V voltage/current 6A (8A Max), the automatic Buck Boost Voltage Convertor (BBVC) output 20VDC/4A (5A Max) to charge the DC UPS power supply system
Output DC voltage / current: 12VDC/6A

External load voltage

DC 11.7V~14.2V +-3%

External load current

5A (8A around 100W/H Max)

Battery charging voltage

13.8V~14.2V +-3% Max

Battery standard charging current

4A

Transform Efficiency

95%

Strengthen the protection measures

With

Special operations functions

l   Power outages without disrupting the operation of the on-line operation system (monitor system not black screen)

l   MCU microprocessor starts, automatic charging and discharging systems functioning State protection

l   Automatically detect abnormal voltage the battery status and abnormal aging or faulty battery or battery charging protection

l   Shell opening record of vandal detection and RS-485 signal alarm mechanism (optional function)

l   With temperature detection records with read function mechanism

l   Mechanism of low temperature (@ -35°C) & high temperature (@ +75°C) protection (Please see note 3 & note 4)

l   Specially designed battery cycle life defining and recording and control mechanisms (optional function)

l   RS-485 input / output interface, can enhance remote management and control in real time (optional function)

l   System operation State record function

l   Support industrial MODBUS communication protocol (allowing the PLC programmable logic control)

l   Input overvoltage protection

l   Input power supply over-current protection

l   Input of positive and negative polarity reverse protection

l   Input short-circuit protection

l   Input lightning or power surge protection up to 1300W

l   Battery full charge, input power supply power directly to the load, maximum output power is reached, at the same time avoiding battery overcharge protection

l   Battery intelligent charging system protection and the float charge function

l   Output power limit voltage protection

l   Output power limit current protection

l   Output of positive and negative polarity reverse protection

l   Output short circuit protection

l   Output lightning or power surge protection up to 1300W

l   Battery voltage is less than 12.8V, MCU microprocessor automatically starts into the battery low discharge warning state

l   Battery discharge below the 11.7V,MCU microprocessor automatically stop discharging into the battery low voltage protection status

l   Battery voltage is lower than 11.2V, MCU microprocessor goes into sleep protection status

l   Battery low voltage static ultra-low power protection

l   When the input power, MCU microprocessor automatically starts recovery operation mechanism

l   After discharge low voltage battery protection to restart the battery, special designed discharge voltage protection function

l   Discharging under load, batteries have added support mode power supply operation

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with car cigarette lighter power connection charging port and protection (including fuse)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), with buck boost voltage, fixed voltage, and stabilizing the voltage to upgrade effect of power supply protection.

l   Match the automatic Buck Boost Voltage Convertor (BBVC), overvoltage and overcurrent and lightning / power surge protection (30V 1500W)

l   Match the automatic Buck Boost Voltage Convertor (BBVC), DC 18-20VDC power supply can be used as a vehicle and charge the notebook or device for temporary

l   Specially designed "Automatically Detect the Healing Recovery Function", to solve user errors using an action or temporary power Input charge / output discharge for abnormal, causing alarm fault automatic removal mechanism of State

Support Battery Type

C-LiFePO4 Lithium Batteries
Lead-acid batteries or lithium batteries or other battery, can be customized to modify (optional function)

Battery Safety Protection

Use pressure type explosion-proof battery design

Built-in battery capacity range

32.2Ah @ 12.8V (412 WH) ~ 60.9Ah @ 12.8V (780 WH)

Battery Charge Mode

CC/CV MCU Automatic charging mode control

Battery Charge Voltage

14.2V +- 3%

Battery Charge Float Voltage

13.8V +- 3%

Battery Cut-off Discharge Voltage

11.7V +- 3%

Battery recovery discharge voltage

12.8V +- 3%

Max. Charge Current

5A

Max. Discharge Current

8A (Using load-discharge C-LiFePO4 Lithium Batteries, the maximum discharge current is 8A around 100W/H)

Charging and Discharging at same time, the Max. discharge current

5A

Charging and Discharging at same time, the Max. discharge watts

65W/H, recommends assessing the normal functioning of the system total power consumption, lower wattage requirements is appropriate.

Life cycle the battery 0.2C charge & 0.5C discharge
(Battery capacity remaining after using 80%, the defined service life will terminate)

@ 25°C 2000 Times (@ 25°C discharging 800 times: after more than 93% capacity, @ 25°C discharging 1100 times: after more than 90% capacity)
@ 45
°C 1600 Times
@ 50
°C 1200 Times
@ 60
°C 550 Times
@ 60
°C 720 Times  70%

Industrial Housing & Connector

Aluminum Airtight Housing
IP 68 M12 Connector

Connector Type

Vehicle charging circuit or car cigarette lighter, enter 12~28V DC voltage / current 6A (8A Max)
DC output: 12V DC Jack to DC Jack connector
Input / Output I/O interface: RS-485 (optional function)

Operating Temperature

(Discharge Temperature)

-35°C ~ +75°C (Including the chassis of the machine working temperature tolerance)
-20
°C ~ +60°C (Excluding institutions, the battery operating temperature tolerance)
+20
°C ~ +40°C Battery Capacity:100%
-10
°C Battery Capacity : 60%
-20
°C Battery Capacity : 48%

Charging Temperature

-35°C ~ +75°C (Including the casing machine operation)

Storage Temperature

-35°C ~ +75°CRecommendations at +20°C ~ +30°C environmental temperature for storage.

Rel. Humidity

10~95%RH

Storage Time

Do not wake the system can store 12 months
(after you wake the system, each 3 months charging 1 times; Please fully charging battery in first times to use)

Dimension

DC UPS : 210(L) x 200(W) x 195mm(H) ; BBVC : 195mm(L)x92mm(W)x48mm(H)

Weight

4.8Kg + 0.5Kg(BBVC)

5.2Kg + 0.5Kg(BBVC)

5.8Kg + 0.5Kg(BBVC)

6.5Kg + 0.5Kg(BBVC)

7.7Kg + 0.5Kg(BBVC)

LED Indicator

1. AC input (Converted to DC power supplies): red light constant light, show on battery in full charge status.
2. AC input (Converted to DC power supplies): red light flashing display, represents the battery is charging status.
3. When the battery is not charging, insert the 12VDC device load discharge, discharge the green light constant light show, shine on behalf of low voltage in discharge, please do the charging operation
4. Simultaneous charging of the battery, insert the 12VDC device load discharge, discharge the green light constant light show
5. AC input (Converted to DC power supplies): quick shine a red light shows that represents an input power supply or the input port or the battery charge State, please remove the input power terminal as soon as possible.
6. Insert the load discharge 12VDC devices: fast shiny green display on behalf of power output or output port or abnormal battery discharge condition is request to remove output power connector as soon as possible.

Note 1: when the system alarm status, please remove the cause as soon as possible the reason for the exception. When after eliminating abnormal, just re-switch input power supply or plug power to supply again, the red LED flashing light signal will resume once per second in charging status. Those processing will remove most of the alarm status, allow the system to resume normal operation.

Note 2: when a temporary abnormal use or abnormal operation occurs, causing the system to start the alarm status, specially designed automatic recovery mechanism 3 times the purpose and again after every 10 seconds to detect anomalies and try to exclude temporary malfunction alarm state.

Housing

IP66

Approvals

CE & FCC

Installation

1.Street lamp pole mount
2.Upright pole mount
3.Wall mount installation
4.DIN Rail (Optional)

Warranty

Intelligent charge & discharge main board & IP66 housing & parts support two years limited warranty.
Customize C-LiFePO4 lithium batteries support one year limited warranty.

Note 1: Battery Capacity is +- 5%.

Note 2: Product specifications change, without notice, consultation with agent or dealer before buying the latest specifications.

Note 3: detect the temperature reached -30, start the red LED have low temperature warning, reach low temperature -35 , a start-stop system function will enable, when temperatures returned to above -30, normal operation will resume.

Note 4: detect the temperature reached +70, start red LED have high temperature warning, reach high temperature +75, a start-stop system function will enable, when temperatures back below +70 temperature, normal operation will resume.


I I I I I I

IO-Power Technology Co., Ltd. 1F, No. 5, Neighbor 1, Chailin Vil., Xikou Township, Chiayi County 623, Taiwan  Tel / Fax :+886 5 2697 986

Line ID: jmj10101  E-mail:io-power@io-power.com.tw  jacky@io-power.com.tw




Web Management Mail to  io-power@io-power.com.tw   Copyright (C) 2009 ~ IO-Power Technology Co., Ltd Last Upgrade:04.09.2024
