New Products Announce !!

IOP-DANFO-5M3000606

5GHz 30dBi Dual Polarization MIMO Dish Antenna

Electrical Specification

Frequency range

5150 - 5850 MHz

Gain

30 dBi

VSWR

1.8 : 1 Max.

Polarization

Dual Linear, +- 90°

HPBW / Horizontal

6°

HPBW / Vertical

6°

Standard compliance

N / A

Front to back ratio

-35dB (Max)

Isolation

24dB (Min)

Power handing

100W (cw)

Impedance

50 Ohms

Connector

N Jack Female × 2

Environmental & Mechanical Characteristics

Survival wind speed

241Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Radome color

Gray

Radome material

Aluminum Die Cast

Weight

6.15Kg

Dimensions

Φ 600

Mounting Mast Dimension

Ø50 ~ Ø80

Use 5GHz 30dBi dual-polarized MIMO gain directional dish antenna
 For long distance point to point wireless transmission of connection signals 30Km computing

Product Data Sheet Download

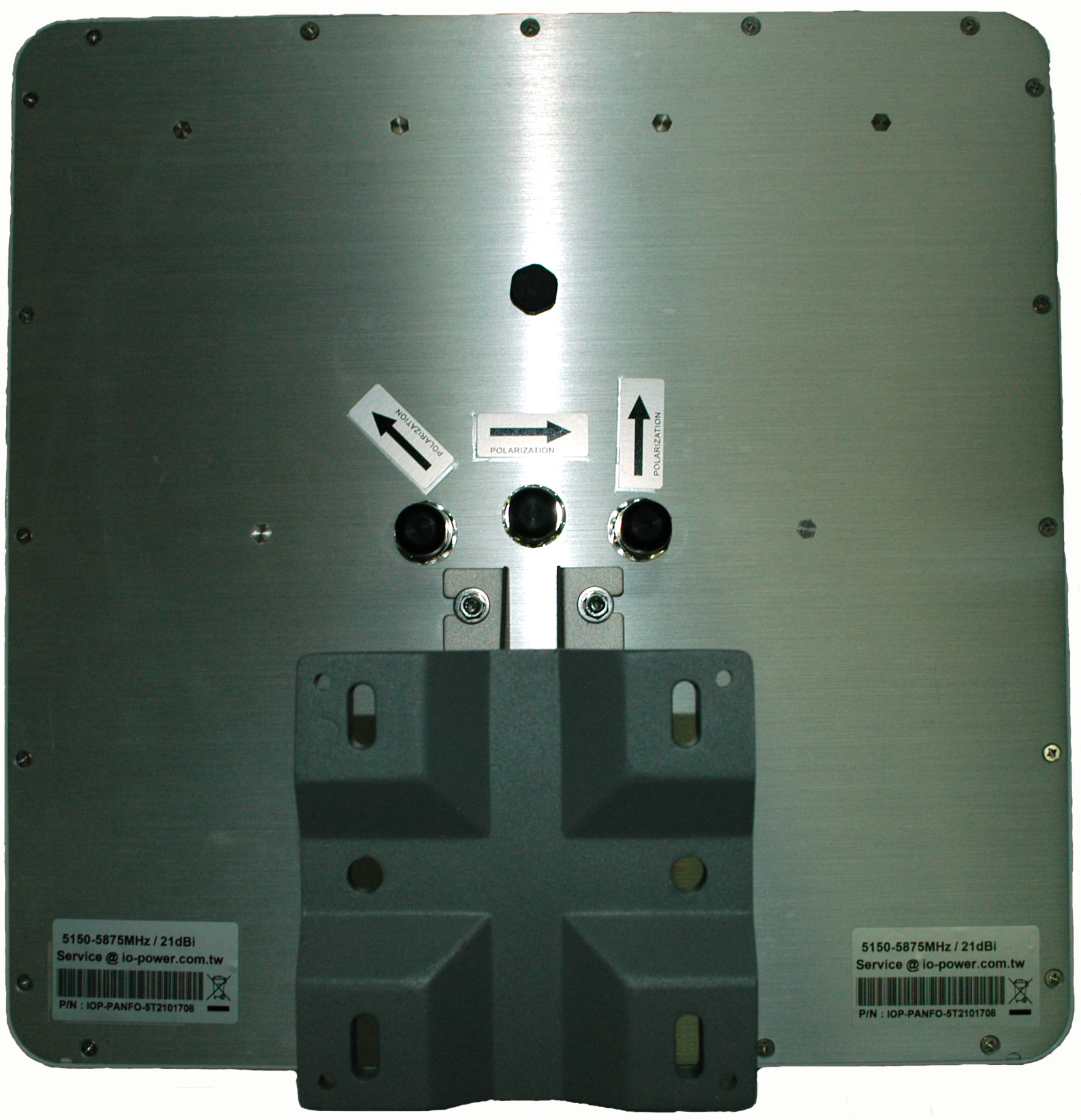

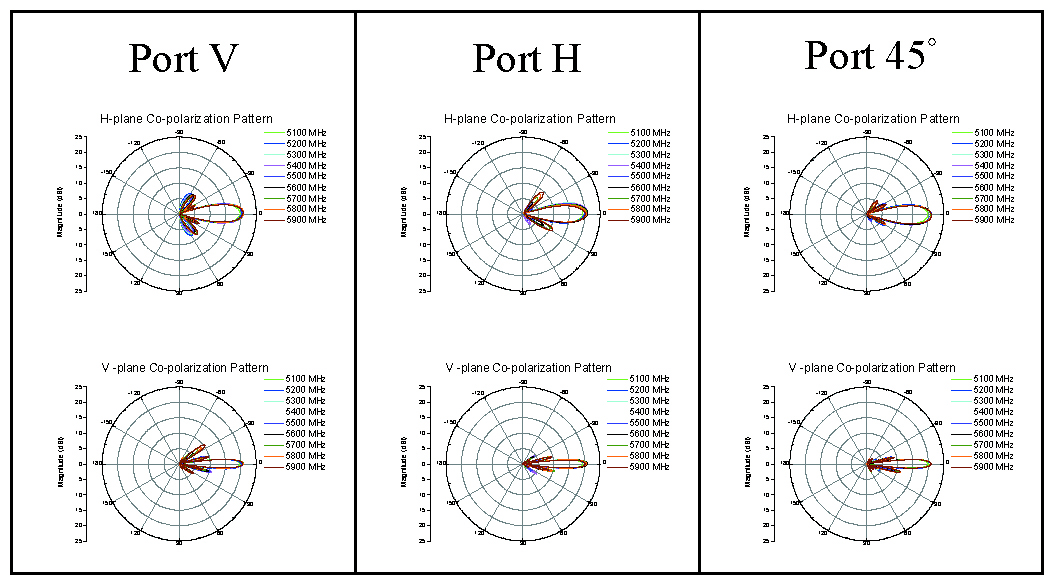

New Products Announce !!

IOP-PANFO-5T2101708

5GHz 21dBi Triple Polarization MIMO Panel Antenna

Electrical Specification

Frequency range

5150 - 5875 MHz

Gain

20 +- 1dBi

VSWR

2 : 1 Max.

Polarization

Linear, Horizontal / Vertical & 45°

HPBW / Horizontal

17°

HPBW / Vertical

8°

Sidelobe Level

-10dB (Max)

Front to back ratio

-35dB (Max)

Isolation

25dB (Min)

Power handing

6W (cw)

Input Impedance

50 Ohms

Connector

N Jack × 3

Environmental & Mechanical Characteristics

Survival wind speed

216Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Lightning protection

DC ground

Radome color

Gray-white

Radome material

PC, UV resistant (UL94 V-2)

Weight

2.5Kg

Dimensions

371 × 371 × 165 mm

Waterproof

IP-X7

Mounting kit

Pole mount & Wall mount

Product Data Sheet Download



Outdoor 5GHz 16dBi Dual Polarization MIMO Panel Antenna

IOP-PANJO-5M1602422

Support Point to Point Transmit Distance about 2Km and Bandwidth 150Mbps

Electrical Specification

Frequency range

5150 - 5875 MHz

Gain

15-16 dBi

VSWR

2 : 1 Max.

Polarization

Dual Linear, +- 90°

HPBW / Horizontal

17°-24°

HPBW / Vertical

17°-22°

Front to back ratio

-20dB (Max)

Isolation

25dB (Min)

Power handing

6W (cw)

Impedance

50 Ohms

Cable

RG233, 70cm

Connector

N Jack × 2

Environmental & Mechanical Characteristics

Survival wind speed

216 Kg / hr

Temperature

-40 to +80

Humidity

95% @ 55

Lightning protection

DC ground

Radome color

Gray

Radome material

ABS, UV resistant

Weight

800g

Dimensions

210 x 210 x 73 mm

Waterproof

IP-X5

Mounting kit

Pole mount & Wall mount

*exclusive of mounting kit

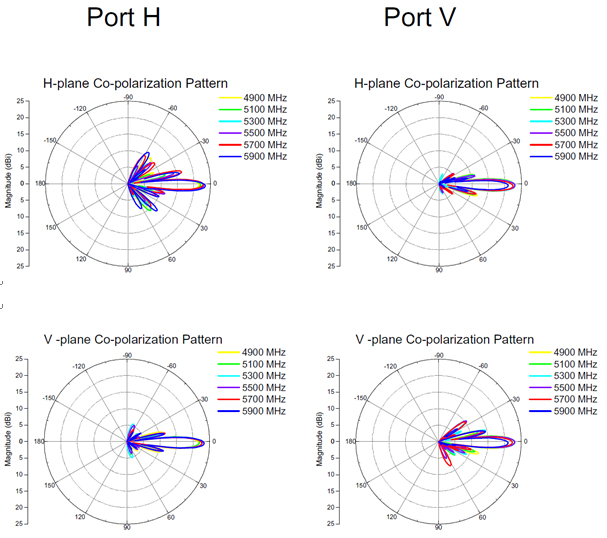

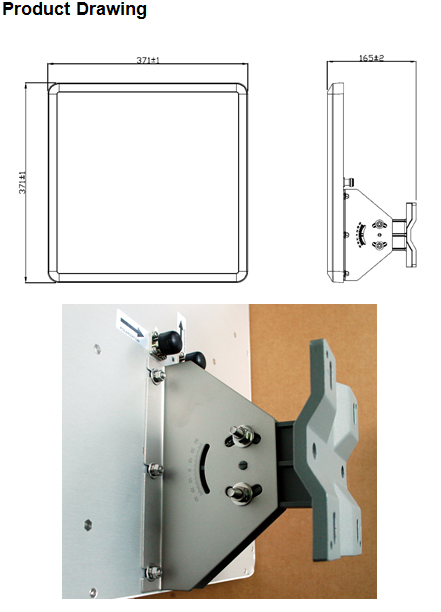

Outdoor WiFi 5GHz 23dBi Dual Polarization MIMO Panel Antenna

IOP-PANFO-5M2300808

Support Point to Point Transmit Distance about 15Km and Bandwidth 150Mbps

IOP-PANFO-5M2300808

5GHz 23dBi Dual Polarization MIMO Panel Antenna

Electrical Specification

Frequency range

4900 - 5875 MHz

Gain

22 dBi ± 1dBi

VSWR

2 : 1 Max.

Polarization

Dual Linear, +- 90°

HPBW / Horizontal

8°

HPBW / Vertical

8°

Side Lobes Level

-10dB (Max)

Front to back ratio

-35dB (Max)

Isolation

20dB (Min)

Power handing

6W (cw)

Impedance

50 Ohms

Connector

N Jack × 2

Environmental & Mechanical Characteristics

Survival wind speed

216Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Lightning protection

DC ground

Radome color

Gray-white

Radome material

PC, UV resistant

Weight

2.5Kg

Dimensions

371 × 371 × 165 mm

Waterproof

IP-X7

Mounting kit

Pole mount & Wall mount

*exclusive of mounting kit

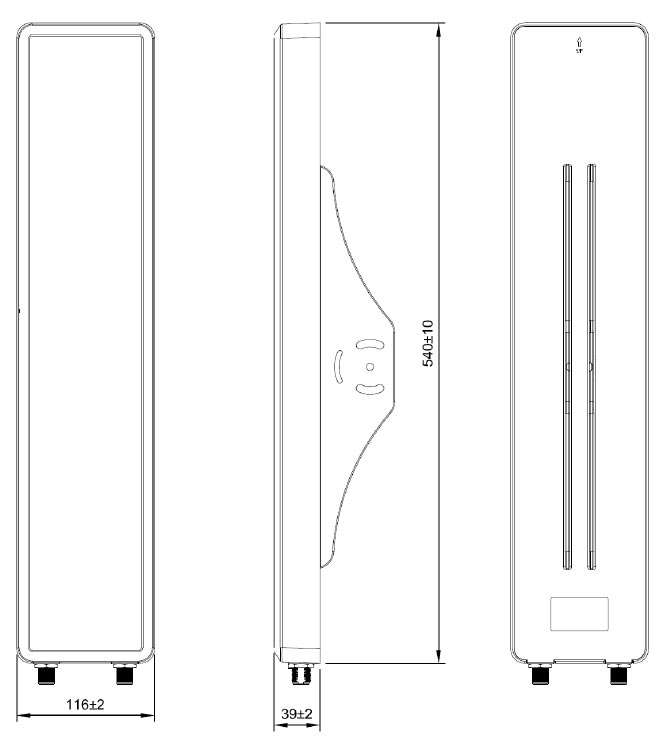

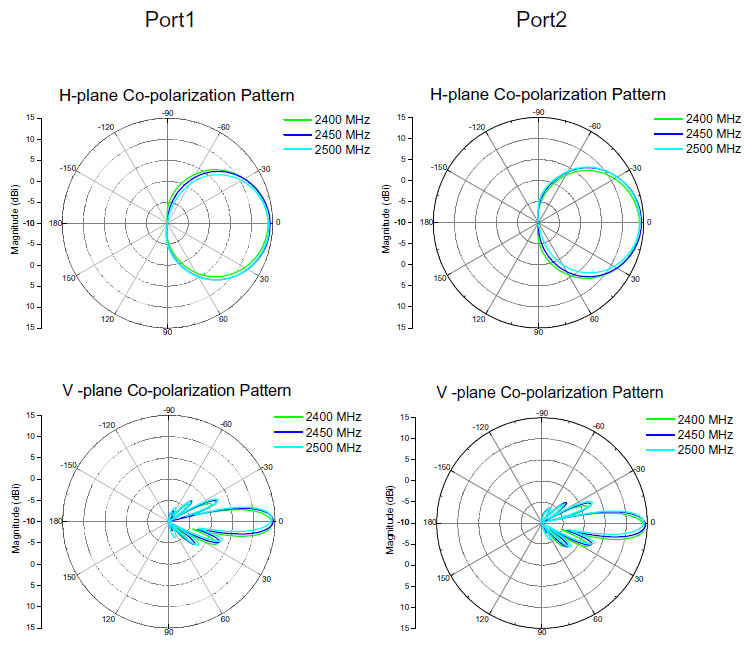

IOP-SANFO-2M1406013

2.4GHz 14dBi Dual Polarization MIMO Sector Antenna

Electrical Specification

Frequency range 2400 - 2500 MHz
Gain 14 ± 0.5 dBi
VSWR 2 : 1 Max.
Polarization Linear, +- 45°
HPBW / Horizontal (3dB/6dB) 60° / 90°
HPBW / Vertical (3dB/6dB) 13° / 20°
Side lobe level -5 dB (Max.)
Front to back ratio -25dB (Max)
Isolation 20dB (Min)
Power handing 10W (cw)
Impedance 50 Ohms
Connector N Jack × 2
Lightning protection DC ground

Environmental & Mechanical Characteristics

Survival wind speed 216Km/hr
Temperature -40 to +80
Humidity 95% @ 55
Radome color Gray
Radome material ABS, UV resistant
Weight 800g
Dimensions 540 x 116 x 39 mm
Waterproof IP-X5
Mounting kit Pole mount & Wall mount

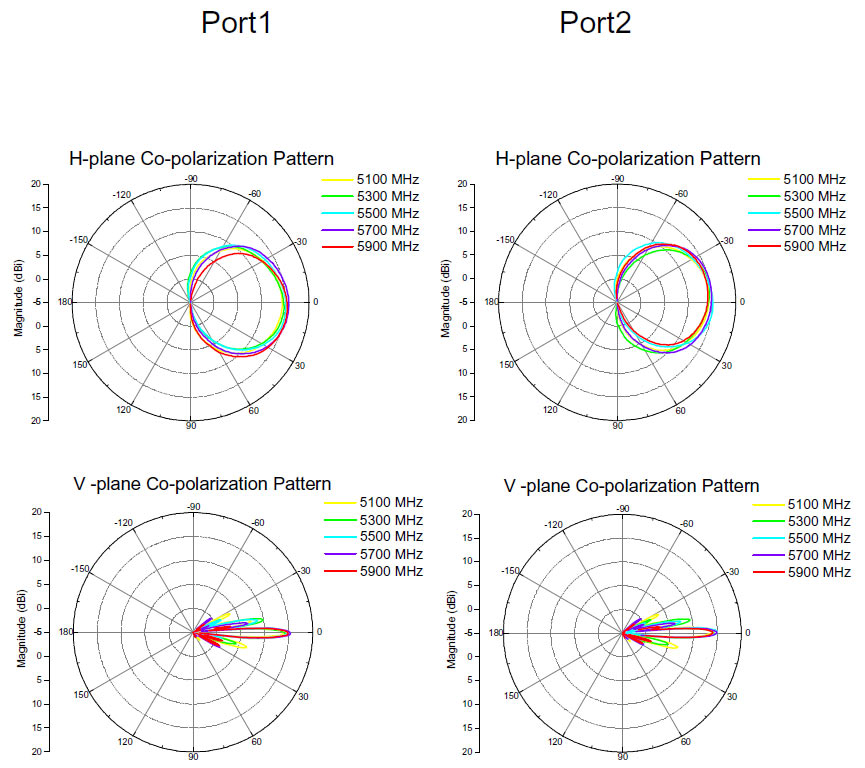

IOP-SANFO-5M1506008

5GHz 15dBi Dual Polarization MIMO Sector Antenna



Electrical Specification

Frequency range

5150 - 5875 MHz

Gain

15±0.5 dBi

VSWR

2 : 1 Max.

Polarization

Dual Linear, +- 45°

HPBW / Horizontal (3dB)

60°

HPBW / Horizontal (6dB)

90°

HPBW / Vertical (3dB)

Side Lobe Level

-5 dB (Max.)

Front to back ratio

-30dB (Max)

Isolation

20dB (Min)

Impedance

50 Ohms

Cable

N/A

Connector

N Jack × 2

Power handing

6W (cw)

Lightning protection

DC ground

Environmental & Mechanical Characteristics

Survival wind speed

216Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Radome color

Gray

Radome material

ABS, UV resistant

Weight

0.8Kg

Dimensions

540 x 116 x 39 mm

Waterproof

IP-X5

Mounting kit

Pole mount & Wall mount

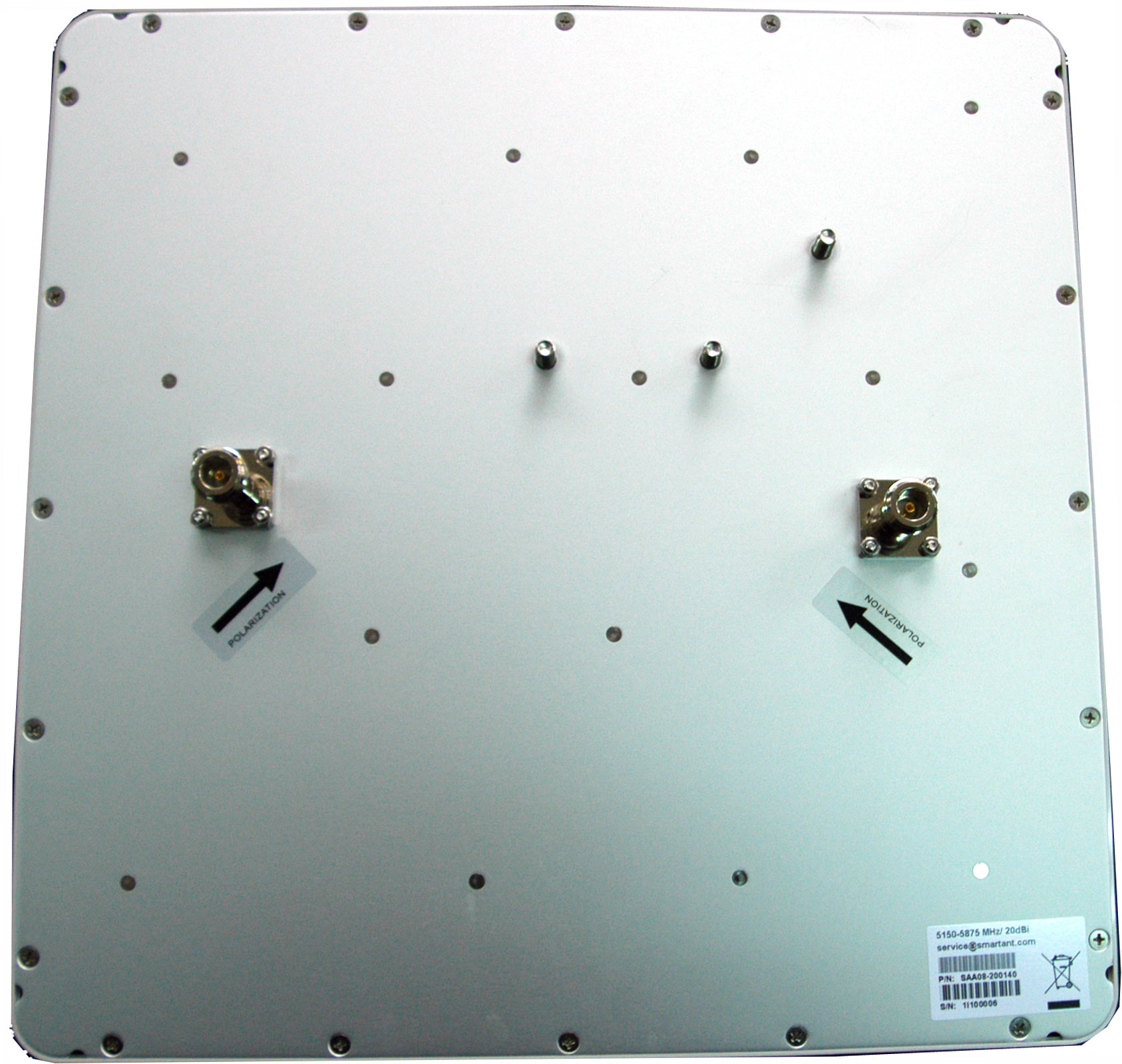

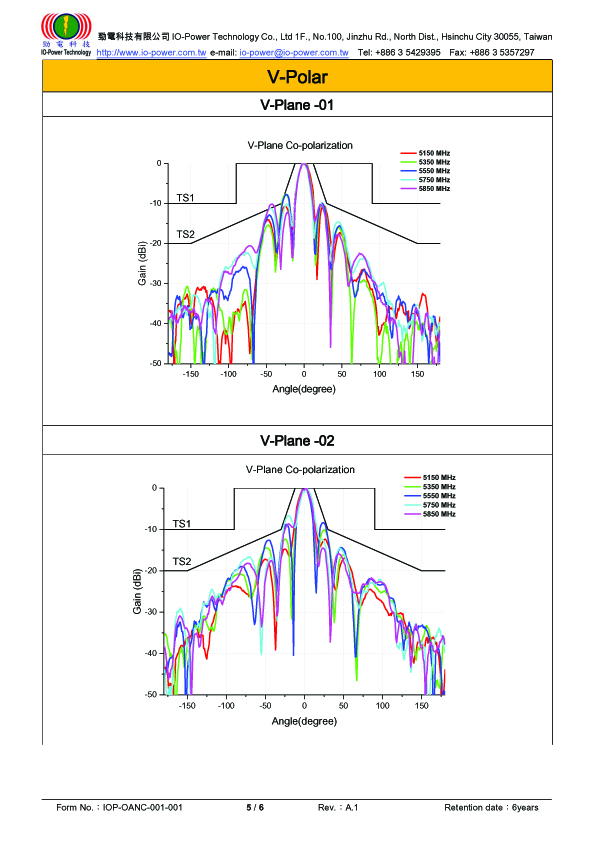

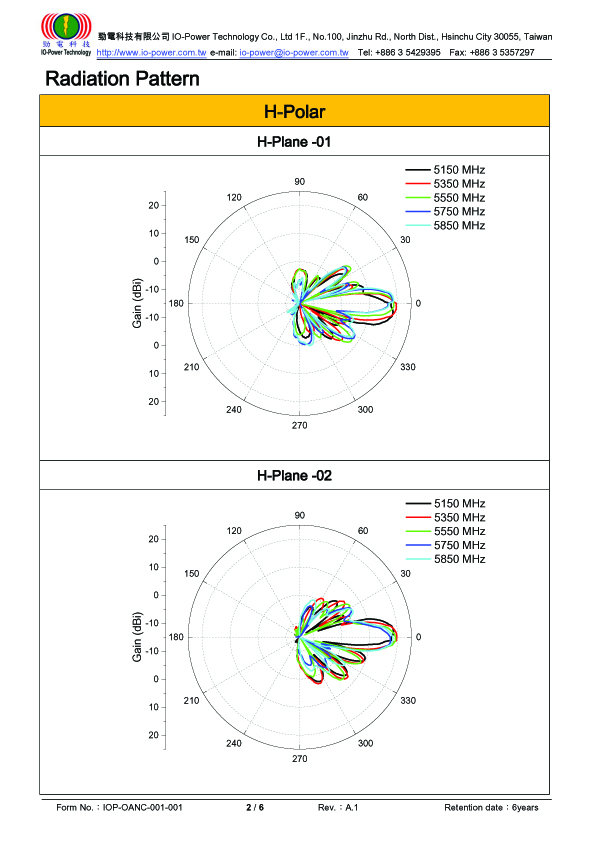

Outdoor 5GHz 20dBi Dual Polarization MIMO Panel Antenna

IOP-PANFO-5M2001010

Support Point to Point Transmit Distance about 6Km and Bandwidth 150Mbps



Electrical Specification

Frequency range

5150 - 5875 MHz

Gain

20 dBi

VSWR

2 : 1 Max.

Polarization

Dual Linear, +- 45°

HPBW / Horizontal

10°

HPBW / Vertical

10°

Standard compliance

N / A

Front to back ratio

-30dB (Max)

Isolation

24dB (Min)

Power handing

6W (cw)

Impedance

50 Ohms

Connector

N Jack × 2

Environmental & Mechanical Characteristics

Survival wind speed

216Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Lightning protection

DC ground

Radome color

Gray

Radome material

PC, UV resistant

Weight

1245g

Dimensions

320 × 320 × 20 mm

Waterproof

IP-67

Mounting kit

Pole mount & Wall mount

*exclusive of mounting kit



IOP-RFCFD-400150NMR

CFD-400 N-Type 1.5M Antenna RF Cable



IOP-RMTOC-173830510B

Self-Bonding Rainproof Insulating Tape SPEC

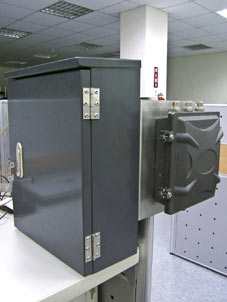

Outdoor Wireless System Power Container

1.Outdoor System Power Container
(Big)

Big Size can
provide 3 AP devices to set up.


Bi
g Power Container fix AP type
2.Outdoor System Power Container
(Small)

Small Size can provide 1~2 AP
devices to set up.

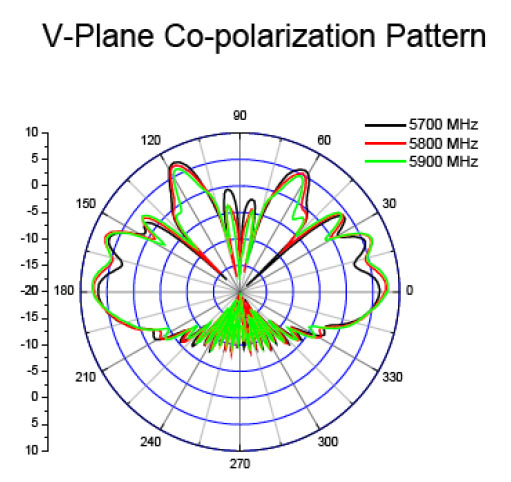

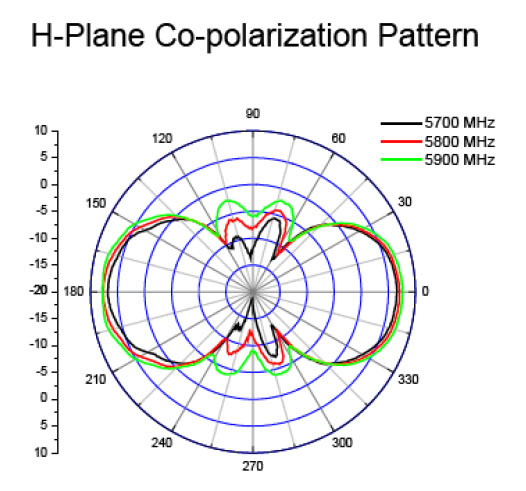

5.8GHz 7dBi Mobile Car Dome Outdoor Antenna

Type Mobile Car Dome
Model

IOP-MANFO-580706021





Electrical Specification

Frequency range

5725MHz – 5875MHz

Gain

7dBi

VSWR

1.5: 1 Max.

Polarization

Linear, Vertical

HPBW / Horizontal

60°

HPBW / Vertical

21°

Standard compliance

N / A

Front to back ratio

N / A

Isolation

N / A

Impedance

50 Ohms

Cable

N / A

Connector

N Jack

Power handing

20W (cw)

Lightning protection

N / A

Environmental & Mechanical Characteristics

Survival wind speed

216Km/hr

Temperature

-40 to +80

Humidity

95% @ 55

Radome color

White

Radome material

PC, UV resistant

Weight

980g

Dimensions

200 x 118 x 90 mm

Waterproof

IP-X5

Shock & Vibration

EN61373, Class B,

used on rolling stock

Mounting kit

N / A

*Using a 50*50 cm2 flat ground plane





2.4GHz 4-14 dBi Mobile Car Dome Outdoor Antenna

Type Mobile Car Dome
Model

IOP-MANFO-241436030





2.4GHz Outdoor WiFi Antenna

Type Omni Panel Sector Yagi Grid
Model

IOP-OANFO-240836015

IOP-PANFO-240905050

IOP-SANFO-241209015

IOP-YANFO-241205050

IOP-GANFO-241501621



IOP-OANMO-240836015

IOP-PANFO-241403030

IOP-SANFO-241509008

IOP-YANFO-241402530

IOP-GANFO-241901216



IOP-OANFO-240936010

IOP-PANFO-241602525

IOP-SANFO-241012015

IOP-YANFO-241801515

IOP-GANFO-242401014



IOP-PANFO-241801515

IOP-SANFO-241406513




IOP-SANFO-241706510





5GHz Outdoor WiFi Antenna

Type Omni Panel Sector Yagi Grid
Model

IOP-OANFO-530836012

IOP-PANFO-512300909

IOP-SANFO-581312006

IOP-YANFO-581403025

IOP-GANFO-512201013

IOP-GANFO-542300912

IOP-GANFO-582400912



IOP-OANMO-530836012

IOP-PANFO-581004545

IOP-SANFO-581606006



IOP-GANFO-512500610

IOP-GANFO-542600609

IOP-GANFO-582700609



IOP-OANFO-580836012

IOP-PANFO-581801818



IOP-GANFO-512900507

IOP-GANFO-542900406

IOP-GANFO-583000406



IOP-OANMO-580836012

IOP-PANFO-582300909




IOP-OANMO-580536025





2.4GHz & 5GHz Dual Band & Polarization Outdoor WiFi Antenna

Type Dual Band Dual Polarization Dual Band Three Polarization
Model

IOP-PANFO-DB1503030

IOP-PANFO-2D1702525

IOP-PANFO-DT1404441



IOP-OANFO-DB0536035

IOP-PANFO-5D2001010




IOP-OANMO-DB0536030
