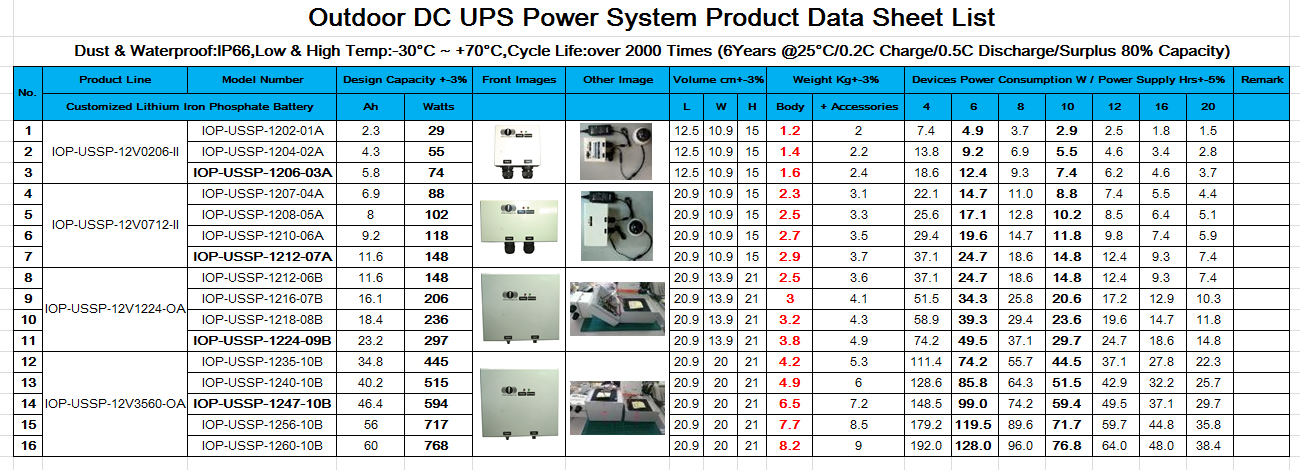

Download : Outdoor DC UPS Power System Product Data Sheet List



IO-Power Wireless Technical Calculation File V20120921

Download : IO-Power Wireless Technical Calculation File V20120921



IO-Power DC UPS Power System Design Calculations

English

Solar DC UPS Power System Design Calculation

Download: Cloudy Weather Collection Model Solar Energy System Calculation Formula (C-LiFePO4 Lithium Batteries)


Chinese (Traditional)

下載: 陰雨天集能型 太陽能系統評估計算公式 (磷酸鐵鋰電池)


English

Street Lamps DC UPS Power System Design Calculation

Download: Street Lamps DC UPS Power System Calculation Formula (C-LiFePO4 Lithium Batteries)


Chinese (Traditional)

下載: 路燈電源型 路燈供電系統評估計算公式 (磷酸鐵鋰電池)


English

Outdoor DC UPS Power System Design Calculation

Download: Outdoor DC UPS Power System Calculation Formula (C-LiFePO4 Lithium Batteries)


Chinese (Traditional)

下載: 長效型 室外不斷電系統評估計算公式 (磷酸鐵鋰電池)







Outdoor Solar DC UPS Power System

Comprehensive Comparison Tables

** The C-LiFePO4 Lithium battery manufacturers, each battery formulations and raw materials are not the same, so different manufacturers of lithium iron phosphate battery the battery output characteristics vary considerably, including high and low temperature tolerance and number of charge and discharge cycle life and charging and discharging efficiency will be significantly different.**

No.

Item

Lead-acid
Solar DC UPS

General Li-Ion
Solar DC UPS

C-LiFePO4 Lithium
Solar DC UPS

Remark

1

Battery Management

Non

Yes, but only high level power system, general level is Non

Yes

Lead-acid battery cannot cell management charging & discharge

2

Battery cycle life
(for Indoor Used)

300~450 times, Left 50-60% Power capacity

500~1000 times, Left 80% Power capacity

>2000 times, Left 80% Power capacity

Real outdoor to test UPS of C-LiFePO4 Lithium Batteries after 1200 times are still have 95% power capacity

3

Service life
(for Indoor Used)

1~1.5 years

1.5~2.5 years

>7 years

Solar DC UPS of C-LiFePO4 Lithium Batteries for indoor used, will have more battery cycle life

4

Battery cycle life
(for Outdoor Used)

150~300 times, Left 50-60%
Power capacity

300~600 times, Left 70%
Power capacity

>1100 times, Left
>80% Power capacity

At the time of system design, you want plus the power attenuation and doubled the capacity of the number and replacement of time and frequency

5

Service life
(for Outdoor Used)

0.5~1 year
(need replace 6 times in 3 years)

1~1.5 year
(need replace 3 times in 3 years)

>3 year

Outdoor UPS of C-LiFePO4 Lithium Batteries real outdoor tested 3 years still 95%~ power capacity

6

Operation of high and low temperature

-0 ~ 45 °C
(with Housing can support -10~55
°C)

-5 ~ 45 °C
(with Housing can support -20~55
°C)

-20 ~ 70 °C
(with Housing can support -30~75
°C)

General Lithium batteries temperature 50°C operation easily damaged

7

Proportional to the design capacity plus

More than 180%

(Deep cycle battery required bonus 150%)

More than 150%

More than 110%

For the sake of the system enough power capacity of the equipment operation, designs are subject to decay to add on, to cope with the operation of the system power supply enough

8

Match Solar Panel

Design wattage required bonus 180%

Design wattage required bonus 150%

Design wattage required bonus 110%

Having regard to the increase in battery capacity to match more of the solar panel, so will affect the set up costs and space used for erection and erection equipment difficulties, for the system is satisfied that requirements for the assessment of projects.

9

Set up space and erection harder

Solar panel need more wattage and size

Solar panel need more wattage and size

Solar panel wattage can match the design and area

Solar panel is too large, would create a wind pressure of an area to improve many, resulting in erection and maintenance of security risks increase, too heavy batteries, too

10

Memory effect

Yes

No

No

C-LiFePO4 Lithium Batteries can fast charging and large current discharge

11

Security

Releasing toxic gas and explosion hazards

Have explosion hazards risk in 50~60°C

No explosion risk**

Solar DC UPS of C-LiFePO4 Lithium Batteries @short circuit conditions, maximum temperature up to 120~130°C, at the same time have the security design of the pressure relief valve, so no explosion risk (please see the test report)

12

Maintenance costs

Very higher

Higher

Lowest

General Li-Ion batteries for use in outdoor environments, will face 3 times in 3 years replacement cost ; While operation due to frequent battery replacement issues, resulting in low system properly rate

13

Battery cost

Cheap

Expensive

Very Expensive

Cost for 1 given to lead-acid battery < deep Lead-acid as 3 times< General Li-Ion as 4~5 times < C-LiFePO4 Lithium as 6~7 times

14

Green environmental protection
(RoHS)

Lead pollution
(No coincide)

Yes
(
Coincide)

Yes
(
Coincide)

2015 Lead Acid Battery will be disabled

Note1: Outdoor solar DC UPS system normally taken facing outdoor high temperature of 55~70°C operating environment requirements, Lead-acid & General Li-Ion battery will be shorten cycle life, even have explosion risk.

Note2: Outdoor solar DC UPS system usually need to face deep discharge and high current charging cycle operational requirements, Lead-acid & General Li-Ion battery will be shortening cycle life and even will accelerated damage.

C-LiFePO4 Lithium Batteries different temperature and short circuit test report

Life Cycle of Different Types of Batteries in High and Low Temperature Comprehensive Comparison Tables

No

Temp

Lead-acid

Solar DC UPS

Deep-cycle Lead-acid

Solar DC UPS

General Li-Ion

Solar DC UPS

C-LiFePO4 Lithium

Solar DC UPS

IO-Power Product Remark

1

-30°C

Unable to work

Unable to work

Unable to work

Possible to work

(able to work with housing)

Controller in the housing and mechanism design, it can work with housing @-30°C

2

-25°C

Unable to work

Unable to work

Unable to work

Able to work
(able to work with housing)

It is able to work @-25°C, however, the discharging capacity is only35-45%

3

-20°C

Unable to work

Unable to work

Able to work
(Discharge capacity 15-25%)

Able to work
(Discharge capacity 45-55%)



4

-15°C

Unable to work

Unable to work

Able to work
(Discharge capacity 20-30%)

Able to work
(Discharge capacity 55-60%)



5

-10°C

Able to work
(Discharge capacity 15-25%)

Able to work
(Discharge capacity 15-25%)

Able to work
(Discharge capacity 30-45%)

Able to work
(Discharge capacity 60-80%)



6

-5°C

Able to work
(Discharge capacity 25-40%)

Able to work
(Discharge capacity 30-50%)

Able to work
(Discharge capacity 40-60%)

Able to work
(Discharge capacity 80-90%)



7

0°C

Able to work
(Discharge capacity 30-50%)

Able to work
(Discharge capacity 40-60%)

Able to work
(Discharge capacity 60-80%)

Able to work
(Discharge capacity 85-95%)



8

25°C

300-500 times
(Solar energy system is deep charging and discharging. Cannot refer to the transient discharging for car)

500-1000 times

500-1000 times

More than 2000 times

Working temperature is based on 25°C for both charging and discharging

9

33°C

150-250 times
(life cycle cuts half when it raise every 8°C)

250-500 times
(life cycle cuts half when it raise every 8°C)



More than 2000 times



10

41°C

75-125 times

125-250 times

When it is over 45°C
Life cycle diminishes obviously.

More than 2000 times



11

49°C

33-65 times

65-125 times

When it is over 50°C
Life cycle diminishes obviously and has risks of explosion.

More than 1500 times



12

56°C

Unable to work

Unable to work

Unable to work

More than 1200 times



13

63°C

Battery damage

Unable to work

Battery damage

More than 700 times



14

70°C

Battery damage

Battery damage

Battery damage

Unable to work
(able to work with housing)

When it is 70°C, controller takes protection and will stop discharging



Download : Outdoor Solar DC UPS Power System Power System Comprehensive Comparison tables_Ev4



Outdoor DC UPS Power System

Comprehensive Comparison Tables

** The C-LiFePO4 Lithium battery manufacturers, each battery formulations and raw materials are not the same, so different manufacturers of lithium iron phosphate battery the battery output characteristics vary considerably, including high and low temperature tolerance and number of charge and discharge cycle life and charging and discharging efficiency will be significantly different.**

No.

Item

Lead-acid
Outdoor DC UPS

General Li-Ion
Outdoor DC UPS

C-LiFePO4 Lithium
Outdoor DC UPS

Remark

1

Size

Big

Middle

Small

In the same capacity, C-LiFePO4 Lithium Batteries size, less than the General Li-Ion battery 15% less than the Lead-acid battery 35%

2

Weight

Very Heavy

Heavy

Lift

In the same capacity, C-LiFePO4 Lithium Batteries weight, less than the General Li-Ion battery 30%,, less than the Lead-acid battery 50%

3

Battery management

Non

Yes, but only high level power system, general level is Non

Yes

Lead-acid battery cannot cell management charging & discharge General

4

Battery cycle life
(for Indoor Used)

300~450 times, Left 50-60% Power capacity

500~1000 times, Left 80% Power capacity

>2000 times, Left 80% Power capacity

Real outdoor to test UPS of C-LiFePO4 Lithium Batteries after 1200 times are still have 95% power capacity

5

Service life
(for Indoor Used)

1~1.5 years

1.5~2.5 years

>7 years

Outdoor UPS of C-LiFePO4 Lithium Batteries for indoor used, will have more battery cycle life

6

Battery cycle life
(for Outdoor Used)

150~300 times, Left 50-60%
Power capacity

300~600 times, Left 70%
Power capacity

>1100 times, Left >80% Power capacity

At the time of system design, you want plus the power attenuation and doubled the capacity of the number and replacement of time and frequency

7

Service life
(for Outdoor Used)

0.5~1 year
(need replace 6 times in 3 years)

1~1.5 year
(need replace 3 times in 3 years)

>3 year

Outdoor UPS of C-LiFePO4 Lithium Batteries real outdoor tested 3 years still 95%~ power capacity

8

Operation of high and low temperature

-0 ~ 45 °C
(with Housing can support -10~55
°C)

-5 ~ 45 °C
(with Housing can support -20~55
°C)

-20 ~ 70 °C
(with Housing can support -30~75
°C)

General Lithium batteries temperature 50°C operation easily damaged

9

Memory effect

Yes

No

No

C-LiFePO4 Lithium Batteries can fast charging and large current discharge

10

Security

Releasing toxic gas and explosion hazards

Have explosion hazards risk in 50~60°C

No explosion risk**

Outdoor UPS of C-LiFePO4 Lithium Batteries @short circuit conditions, maximum temperature up to 120~130°C, at the same time have the security design of the pressure relief valve, so no explosion risk (please see the test report)

11

Maintenance costs

Very higher

Higher

Lowest

General Li-Ion batteries for use in outdoor environments, will face 3 times in 3 years replacement cost ; While operation due to frequent battery replacement issues, resulting in low system properly rate

12

System cost

Cheap

Expensive

Expensive

Cost for 1 given to lead-acid battery < deep Lead-acid as 3 times< General Li-Ion as 4~5 times < C-LiFePO4 Lithium as 6~7 times

13

Green environmental protection
(RoHS)

Lead pollution
(No coincide)

Yes
(
Coincide)

Yes
(
Coincide)

2015 Lead Acid Battery will be disabled

Note1: Outdoor DC UPS system normally taken facing outdoor high temperature of 55~70°C operating environment requirements, Lead-acid & General Li-Ion battery will be shorten cycle life, even have explosion risk.

Note2: Outdoor DC UPS system usually need to face deep discharge and high current charging cycle operational requirements, Lead-acid & General Li-Ion battery will be shortening cycle life and even will accelerated damage.

C-LiFePO4 Lithium Batteries different temperature and short circuit test report

Download : Outdoor DC UPS Power System Power System Comprehensive Comparison tables_Ev2



Indoor UPS and outdoor UPS Power System

Comprehensive Comparison Tables

No.

Item

Indoor UPS

Outdoor UPS

Remark

1

Set up Type

Group

Distributed

Erection of emergency systems should spread risk

2

Size

Big

Small

In the same capacity, C-LiFePO4 Lithium Batteries size, less than the Lead-acid battery 35%

3

Weight

Heavy

Lift

In the same capacity, C-LiFePO4 Lithium Batteries weight, less than the Lead-acid battery 50%

4

Dusty & Waterproof

IP44 or Non

IP67



5

Power conversion efficiency

normal

better



6

Power supply mode

On-line/Interactive
/Off-line

On-line

Online devices operate without disruption

7

Battery type

Lead-acid batteries

C-LiFePO4 Lithium Batteries

Lead-acid battery cannot cell management charging & discharge

8

Battery cycle life

(for Indoor Used)

300~450 times,
Left 50-60% Power capacity

>2000 times

Outdoor UPS of C-LiFePO4 Lithium Batteries after 2000 times are still 80% power capacity

9

Service life

(for Indoor Used)

1.5 year

>7 year

Outdoor UPS of C-LiFePO4 Lithium Batteries for indoor used, will have more battery cycle life

10

Battery cycle life

(for Outdoor Used)

150~300 times, Left 50-60%Power capacity

>1100 times

Outdoor UPS of C-LiFePO4 Lithium Batteries after 1100 times are still 80% power capacity

11

Service life

(for Outdoor Used)

0.5~1 year
(need replace 6 times in 3 years)

>3 year

Outdoor UPS of C-LiFePO4 Lithium Batteries real outdoor tested 3 years still 95%~ power capacity

12

Operation of high and low temperature

-0~45 °C

-20~70 °C

Lead-acid temperature 50 °C operation easily damaged

13

RoHS

Does not meet the RoHS

accord with RoHS

2015 Lead Acid disabled

14

Charging time

8hrs

1.5hrs

@95% Capacity, C-LiFePO4 Lithium Batteries can fast charge

15

High rate discharge

not allowed

Reliable

Outdoor UPS of C-LiFePO4 Lithium Batteries can supply 5~8 times current discharge

16

Memory effect

yes

no



17

Security

Releasing toxic gas and explosion hazards

No explosion risk

Outdoor UPS of C-LiFePO4 Lithium Batteries @short circuit conditions, maximum temperature up to 120~130°C, at the same time have the security design of the pressure relief valve, so no explosion risk

18

Maintenance costs

higher

lowest

Lead-acid batteries for use in outdoor environments, will face 6 times in 3 years replacement cost ; While operation due to frequent battery replacement issues, resulting in low system properly rate

19

System cost

Cheap

Expensive

Lead-acid as 1 price< deep Lead-acid as 3 times< Gen Lithium as 4~5 times < C-LiFePO4 Lithium as 6~7 times

20

System application

Indoor

Indoor and Outdoor

Outdoor UPS for indoor use, will have more Battery cycle life

 Download : Indoor UPS and outdoor UPS Power System Comprehensive Comparison Tables files


I I I I I I

IO-Power Technology Co., Ltd. 1F, No.100, Jinzhu Rd., North Dist., Hsinchu City 30055, Taiwan, R.O.C.  Tel:+886 3 5429395 Fax:+886 3 5357297  E-mail:io-power@io-power.com.tw




Web Management Mail to  io-power@io-power.com.tw   Copyright (C) 2009 ~ IO-Power Technology Co., Ltd Last Upgrade:02.21.2018
