IO-Power 室外WiFi MIMO無線專用天線 Outdoor_WiFi_MIMO_APM_AP

新產品發表 !!

IOP-DANFO-5M3000606

5GHz 30dBi Dual Polarization MIMO Dish Antenna

5GHz 增益30dBi 雙極化MIMO碟型定向天線

Electrical Specification
Frequency range	5150 - 5850 MHz
Gain	30 dBi
VSWR	1.8 : 1 Max.
Polarization	Dual Linear, +- 90°
HPBW / Horizontal	6°
HPBW / Vertical	6°
Standard compliance	N / A
Front to back ratio	-35dB (Max)
Isolation	24dB (Min)
Power handing	100W (cw)
Impedance	50 Ohms
Connector	N Jack Female × 2
Environmental & Mechanical Characteristics
Survival wind speed	241Km/hr
Temperature	-40℃ to +80℃
Humidity	95% @ 55℃
Radome color	Gray
Radome material	Aluminum Die Cast
Weight	6.15Kg
Dimensions	Φ 600
Mounting Mast Dimension	Ø50 ~ Ø80

使用5GHz 增益30dBi 雙極化MIMO碟型定向天線

用於遠距離點對點30Km無線傳輸之連線訊號計算

產品資料下載

新產品發表 !!

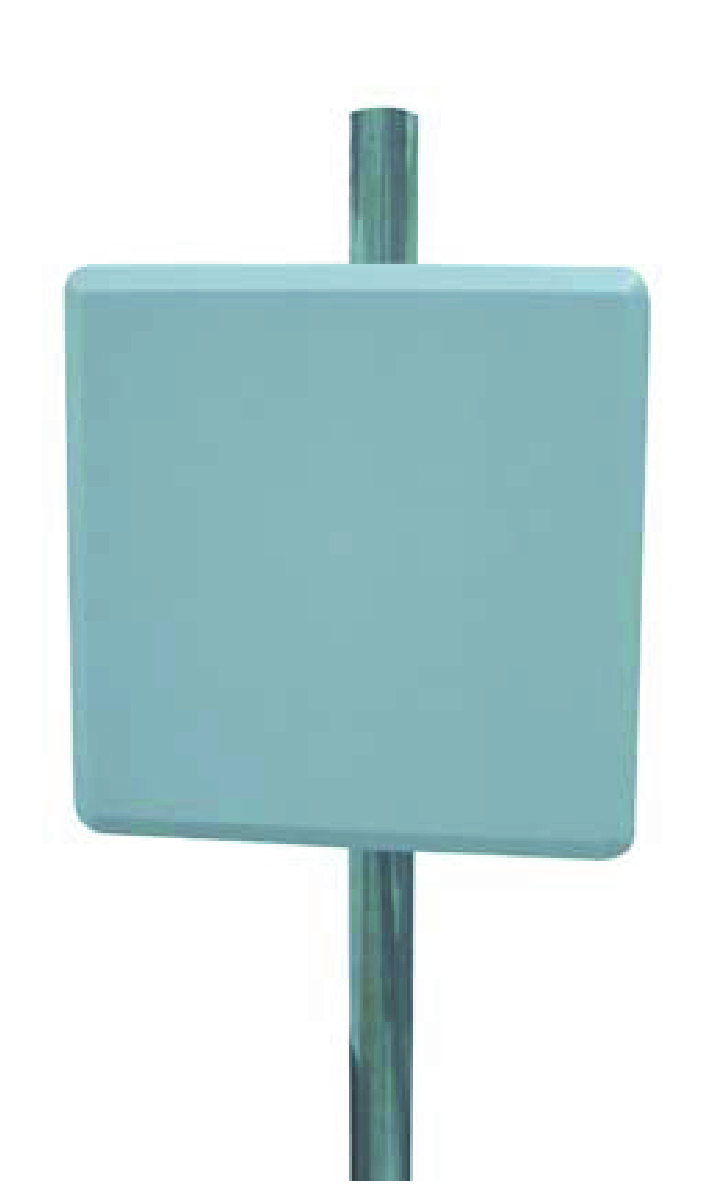

IOP-PANFO-5T2101708

5GHz 21dBi Triple Polarization MIMO Panel Antenna

5GHz 增益21dBi 三極化MIMO板狀定向天線

Electrical Specification
Frequency range	5150 - 5875 MHz
Gain	20 +- 1dBi
VSWR	2 : 1 Max.
Polarization	Linear, Horizontal / Vertical & 45°
HPBW / Horizontal	17°
HPBW / Vertical	8°
Sidelobe Level	-10dB (Max)
Front to back ratio	-35dB (Max)
Isolation	25dB (Min)
Power handing	6W (cw)
Input Impedance	50 Ohms
Connector	N Jack × 3
Environmental & Mechanical Characteristics
Survival wind speed	216Km/hr
Temperature	-40℃ to +80℃
Humidity	95% @ 55℃
Lightning protection	DC ground
Radome color	Gray-white
Radome material	PC, UV resistant (UL94 V-2)
Weight	2.5Kg
Dimensions	371 × 371 × 165 mm
Waterproof	IP-X7
Mounting kit	Pole mount & Wall mount

產品資料下載

室外5GHz 16dBi MIMO雙極化板狀定向天線

IOP-PANFO-5M1602422

(可用於點對點傳輸2公里,傳輸頻寬可達150Mbps)

Electrical Specification
Frequency range	5150 - 5875 MHz
Gain	15-16 dBi
VSWR	2 : 1 Max.
Polarization	Dual Linear, +- 90°
HPBW / Horizontal	17°-24°
HPBW / Vertical	17°-22°
Front to back ratio	-20dB (Max)
Isolation	25dB (Min)
Power handing	6W (cw)
Impedance	50 Ohms
Cable	RG233, 70cm
Connector	N Jack × 2
Environmental & Mechanical Characteristics
Survival wind speed	216 Kg / hr
Temperature	-40℃ to +80℃
Humidity	95% @ 55℃
Lightning protection	DC ground
Radome color	Gray
Radome material	ABS, UV resistant
Weight	800g
Dimensions	210 x 210 x 73 mm
Waterproof	IP-X5
Mounting kit	Pole mount & Wall mount

*exclusive of mounting kit

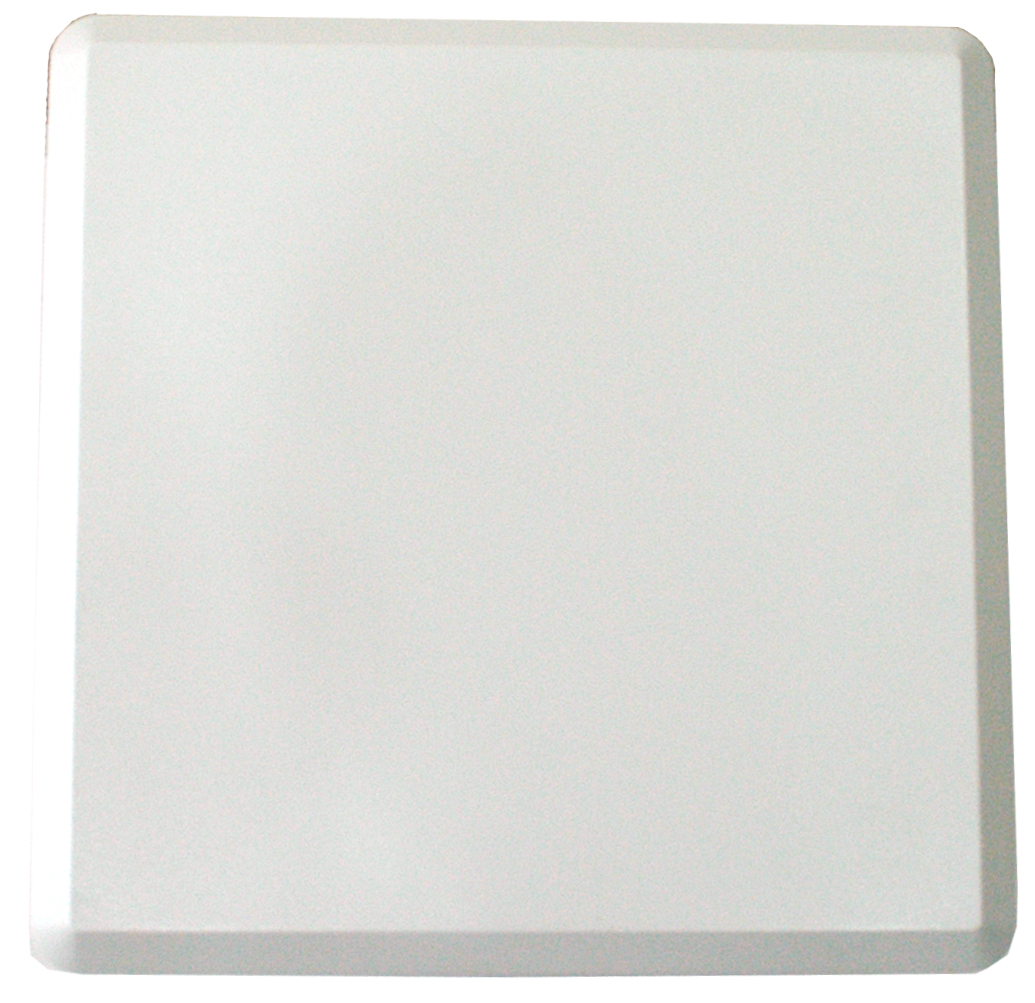

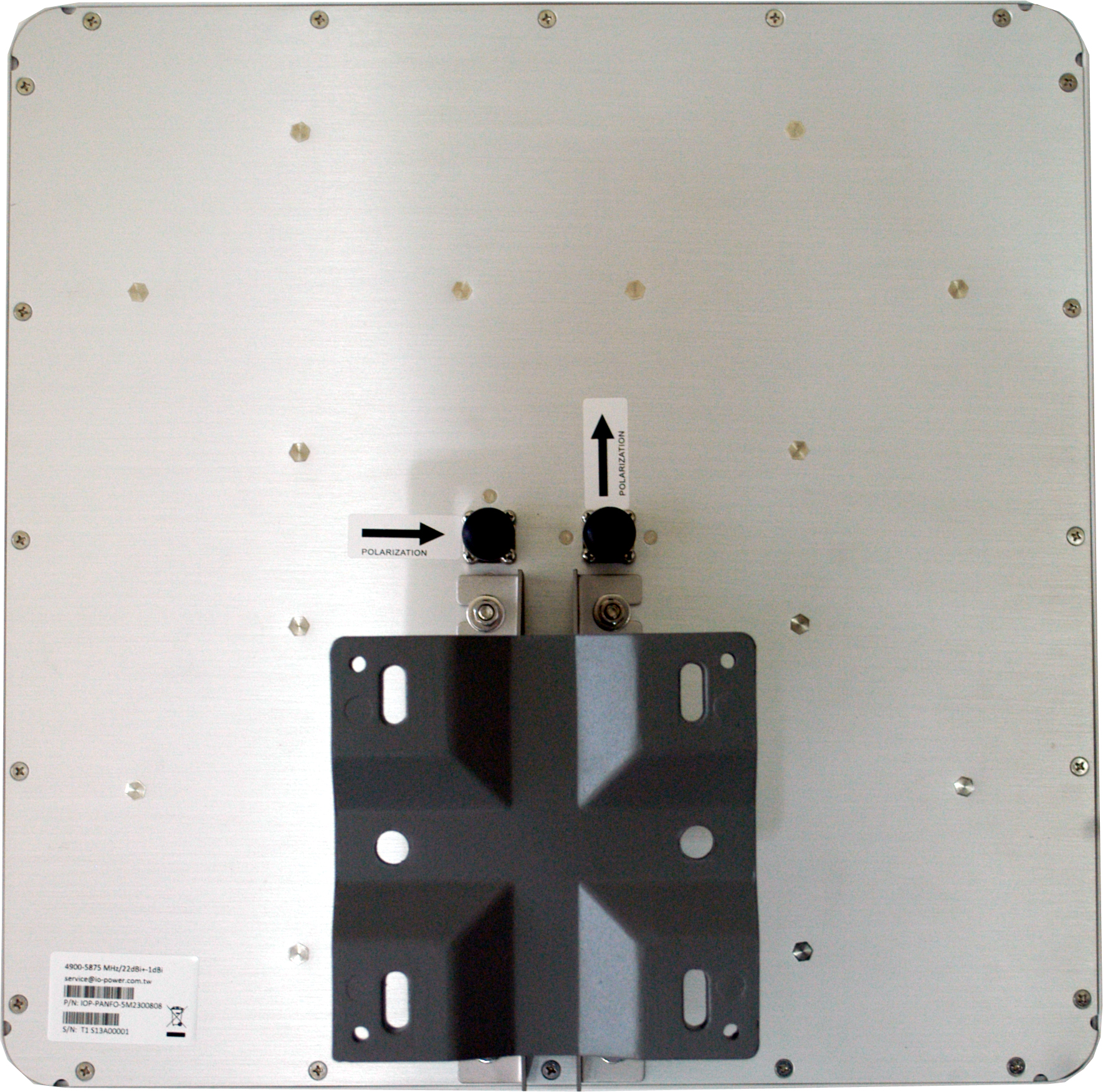

室外5GHz 23dBi MIMO雙極化板狀定向天線

IOP-PANFO-5M2300808

(可用於點對點傳輸15公里,傳輸頻寬可達150Mbps)

IOP-PANFO-5M2300808

5GHz 23dBi Dual Polarization MIMO Panel Antenna

Electrical Specification
Frequency range	4900 - 5875 MHz
Gain	22 dBi ± 1dBi
VSWR	2 : 1 Max.
Polarization	Dual Linear, +- 90°
HPBW / Horizontal	8°
HPBW / Vertical	8°
Side Lobes Level	-10dB (Max)
Front to back ratio	-35dB (Max)
Isolation	20dB (Min)
Power handing	6W (cw)
Impedance	50 Ohms
Connector	N Jack × 2
Environmental & Mechanical Characteristics
Survival wind speed	216Km/hr
Temperature	-40℃ to +80℃
Humidity	95% @ 55℃
Lightning protection	DC ground
Radome color	Gray-white
Radome material	PC, UV resistant
Weight	2.5Kg
Dimensions	371 × 371 × 165 mm
Waterproof	IP-X7
Mounting kit	Pole mount & Wall mount

*exclusive of mounting kit

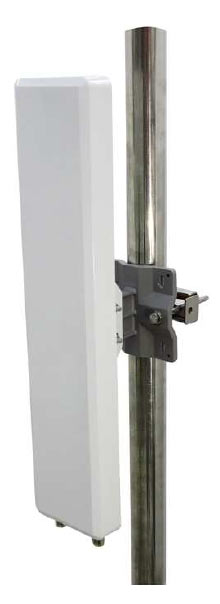

2.4GHz MIMO 室外雙極化天線

IOP-SANFO-2M1406013

2.4GHz 14dBi 雙極化 MIMO 扇型定向天線

Electrical Specification
Frequency range	2400 - 2500 MHz
Gain	14 ± 0.5 dBi
VSWR	2 : 1 Max.
Polarization	Linear, +- 45°
HPBW / Horizontal (3dB/6dB)	60° / 90°
HPBW / Vertical (3dB/6dB)	13° / 20°
Side lobe level	-5 dB (Max.)
Front to back ratio	-25dB (Max)
Isolation	20dB (Min)
Power handing	10W (cw)
Impedance	50 Ohms
Connector	N Jack × 2
Lightning protection	DC ground
Environmental & Mechanical Characteristics
Survival wind speed	216Km/hr
Temperature	-40℃ to +80℃
Humidity	95% @ 55℃
Radome color	Gray
Radome material	ABS, UV resistant
Weight	800g
Dimensions	540 x 116 x 39 mm
Waterproof	IP-X5
Mounting kit	Pole mount & Wall mount

5.8GHz MIMO 室外雙極化天線

IOP-SANFO-5M1506008

5GHz 15dBi 雙極化 MIMO 扇型定向天線

Electrical Specification
Frequency range	5150 - 5875 MHz
Gain	15±0.5 dBi
VSWR	2 : 1 Max.
Polarization	Dual Linear, +- 45°
HPBW / Horizontal (3dB)	60°
HPBW / Horizontal (6dB)	90°
HPBW / Vertical (3dB)	8°
Side Lobe Level	-5 dB (Max.)
Front to back ratio	-30dB (Max)
Isolation	20dB (Min)
Impedance	50 Ohms
Cable	N/A
Connector	N Jack × 2
Power handing	6W (cw)
Lightning protection	DC ground
Environmental & Mechanical Characteristics
Survival wind speed	216Km/hr
Temperature	-40℃ to +80℃
Humidity	95% @ 55℃
Radome color	Gray
Radome material	ABS, UV resistant
Weight	0.8Kg
Dimensions	540 x 116 x 39 mm
Waterproof	IP-X5
Mounting kit	Pole mount & Wall mount

5.8GHz MIMO 室外雙極化天線

IOP-PANFO-5M2001010

5GHz 20dBi 雙極化 MIMO 平板定向天線

Electrical Specification
Frequency range	5150 - 5875 MHz
Gain	20 dBi
VSWR	2 : 1 Max.
Polarization	Dual Linear, +- 45°
HPBW / Horizontal	10°
HPBW / Vertical	10°
Standard compliance	N / A
Front to back ratio	-30dB (Max)
Isolation	24dB (Min)
Power handing	6W (cw)
Impedance	50 Ohms
Connector	N Jack × 2
Environmental & Mechanical Characteristics
Survival wind speed	216Km/hr
Temperature	-40℃ to +80℃
Humidity	95% @ 55℃
Lightning protection	DC ground
Radome color	Gray
Radome material	PC, UV resistant
Weight	1245g
Dimensions	320 × 320 × 20 mm
Waterproof	IP-67
Mounting kit	Pole mount & Wall mount

*exclusive of mounting kit

IOP-RFCFD-400150NMR

CFD-400 N-Type 1.5M 天線延長線

IOP-RMTOC-173830510B

無線系統架設專用熱融膠帶

下載規格書

室外無線系統專用配電箱

1.室外無線系統專用配電箱 (大型)	大型配電箱可提供 2~3台無線設備架設使用.
2.室外無線系統專用配電箱 (小型)	小型配電箱可提供 1~2台無線設備架設使用.

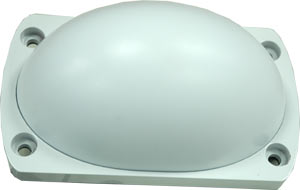

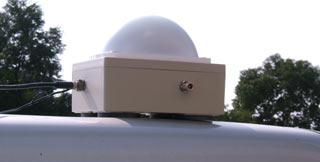

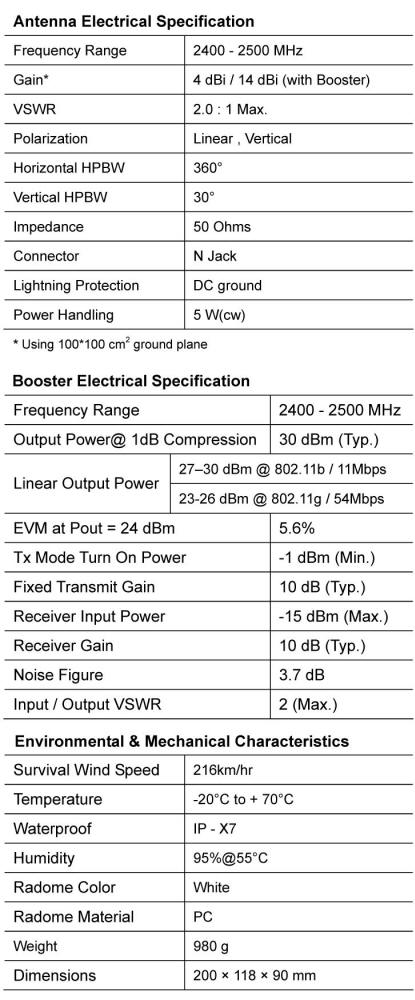

2.4GHz 室外車載專用天線

Model : IOP-ONO-2414-C1

Type	Mobile Car Dome
Model	IOP-MANFO-241436030

2.4GHz WiFi 室外天線

Type	Omni	Panel	Sector	Yagi	Grid

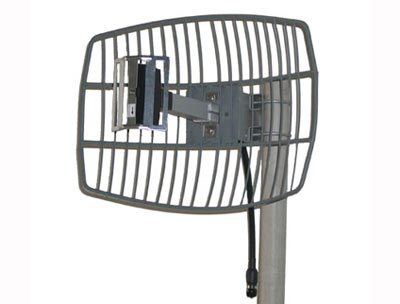

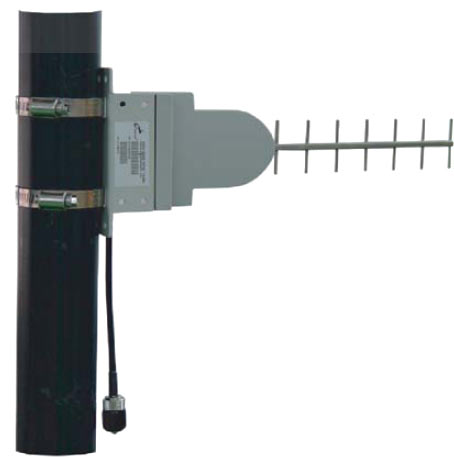

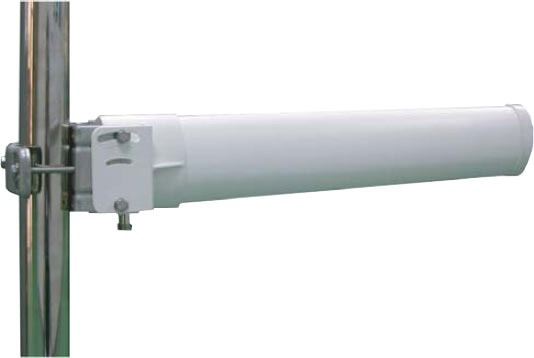

Model	IOP-OANFO-240836015	IOP-PANFO-240905050	IOP-SANFO-241209015	IOP-YANFO-241205050	IOP-GANFO-241501621

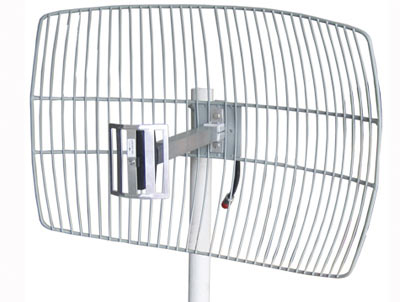

	IOP-OANMO-240836015	IOP-PANFO-241403030	IOP-SANFO-241509008	IOP-YANFO-241402530	IOP-GANFO-241901216

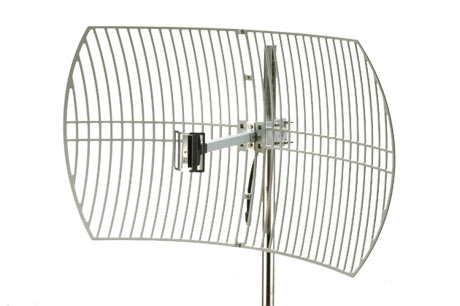

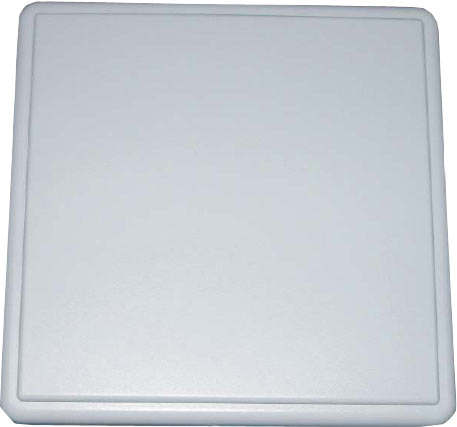

	IOP-OANFO-240936010	IOP-PANFO-241602525	IOP-SANFO-241012015	IOP-YANFO-241801515	IOP-GANFO-242401014

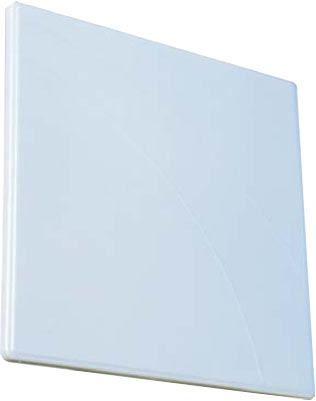

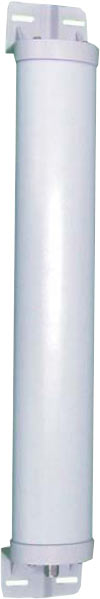

		IOP-PANFO-241801515	IOP-SANFO-241406513
			IOP-SANFO-241706510

5GHz Outdoor WiFi Antenna

Type	Omni	Panel	Sector	Yagi	Grid

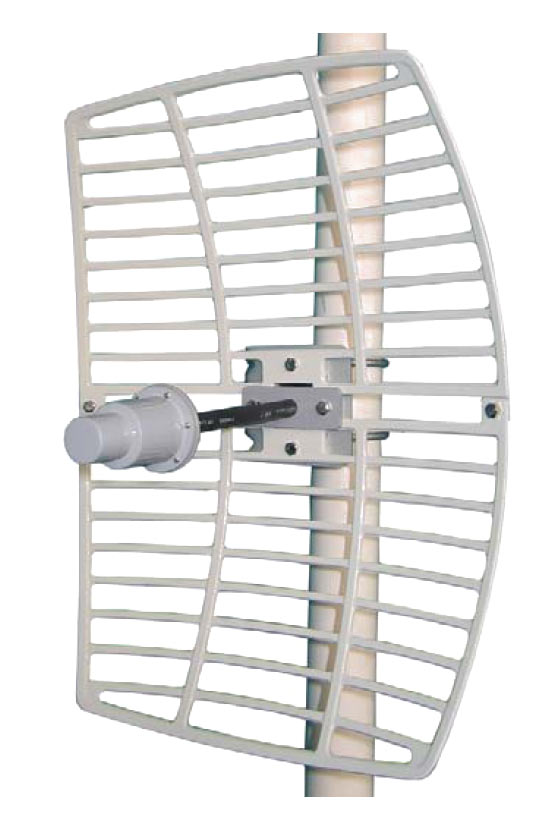

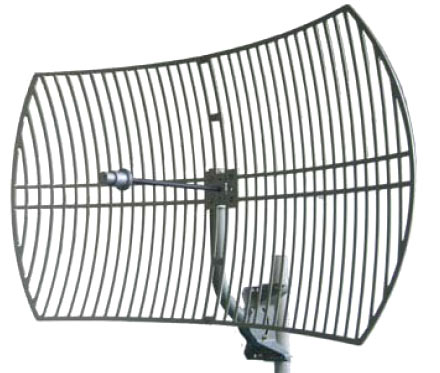

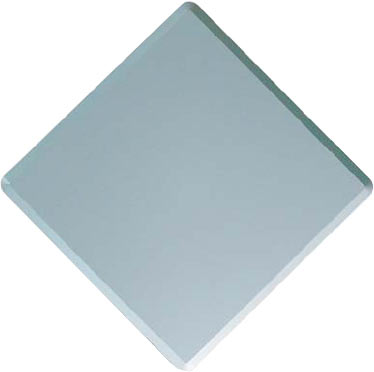

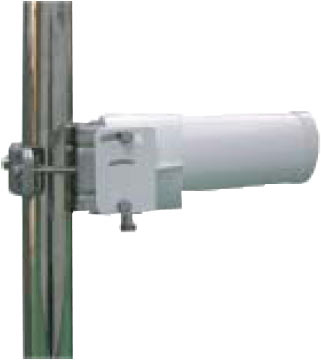

Model	IOP-OANFO-530836012	IOP-PANFO-512300909	IOP-SANFO-581312006	IOP-YANFO-581403025	IOP-GANFO-512201013 IOP-GANFO-542300912 IOP-GANFO-582400912

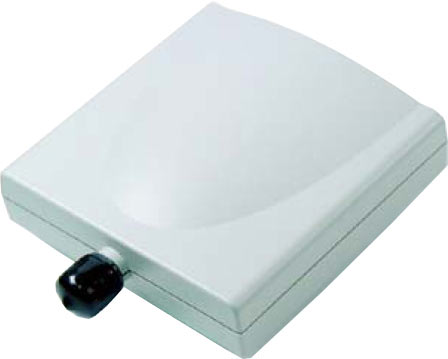

	IOP-OANMO-530836012	IOP-PANFO-581004545	IOP-SANFO-581606006		IOP-GANFO-512500610 IOP-GANFO-542600609 IOP-GANFO-582700609

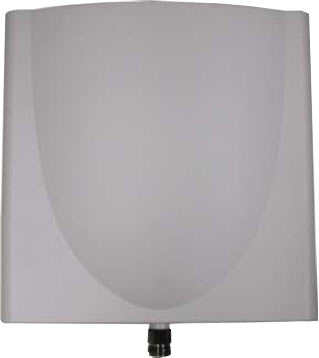

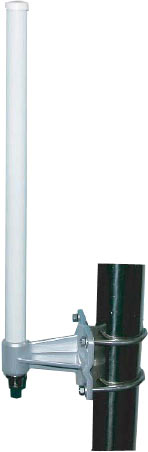

	IOP-OANFO-580836012	IOP-PANFO-581801818			IOP-GANFO-512900507 IOP-GANFO-542900406 IOP-GANFO-583000406
	IOP-OANMO-580836012	IOP-PANFO-582300909
	IOP-OANMO-580536025

2.4GHz & 5GHz Dual Band & Polarization Outdoor WiFi Antenna

Type	Dual Band	Dual Polarization	Dual Band Three Polarization

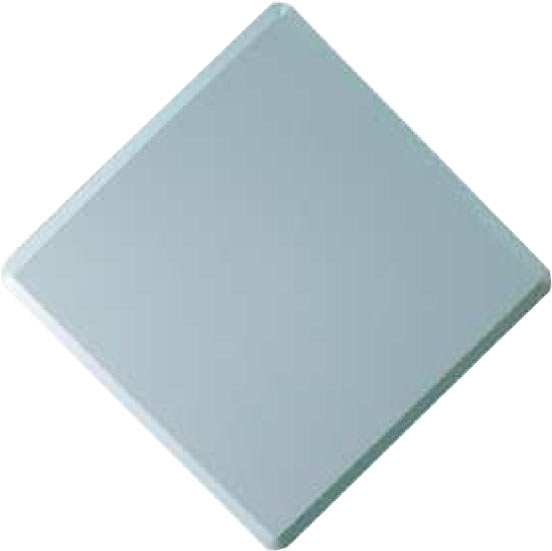

Model	IOP-PANFO-DB1503030	IOP-PANFO-2D1702525	IOP-PANFO-DT1404441

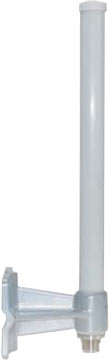

	IOP-OANFO-DB0536035	IOP-PANFO-5D2001010
	IOP-OANMO-DB0536030
